IKO Separable Roller Follower- Metric, NAST20ZZUU, Double Sealed, 20 mm Bore, 47 mm OD

IKO Separable Roller Follower- Metric, NAST20ZZUU, Double Sealed, 20 mm Bore, 47 mm OD

Item #: WBB1309660

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $79.95

Save $4.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

IKO Separable Roller Follower- Metric, NAST20ZZUU, Double Sealed, 20 mm Bore, 47 mm OD

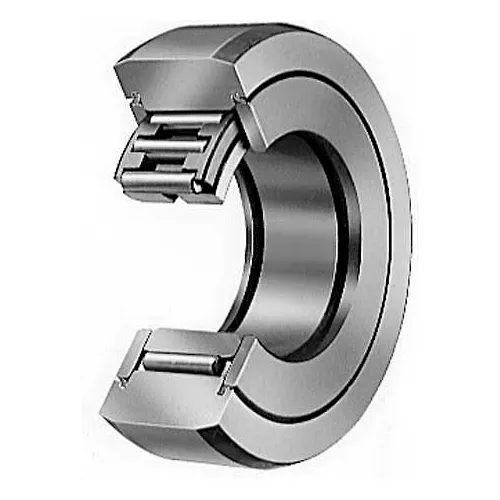

IKO Separable Roller Follower consists of inner ring, needle roller cage, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. These parts can be easily separated providing an easy handling. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Double Sealed followers (suffix ZZUU & ZZUUR) come with pre-packed grease. Since no grease is provided for Double Shielded (suffix ZZ & ZZR), adequate lubrication must be added. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.

  • BRAND IKO
  • DYNAMIC LOAD RATING (N) 19400
  • STATIC LOAD RATING (N) 24500
  • BORE TOLERANCE (mm) +0 / -0.010
  • O.D. TOLERANCE (mm) +0 / -0.011
  • MANUFACTURERS PART NUMBER NAST20ZZUU
  • DESCRIPTION Separable Roller Follower - Metric Series
  • TYPE Double Sealed
  • SERIES NAST
  • OIL HOLE & GROOVE At inner ring
  • RETAINER Pressed Steel
  • NEEDLE CONSTRUCTION Caged
  • CROWN RADIUS (R) mm (inch) --
  • TRACK CAPACITY (N) 13800
  • PREPACKED GREASE YES
  • INNER RING CORNER RADIUS MIN. MM (INCH) 1
  • SHAFT DIA H6 FIT (MM) +0 to -0.013
  • SHAFT DIA G6 FIT (MM) -0.007 to -0.020
  • OUTER RING WIDTH MM (INCH) 19.8
  • TOLERANCE OVERALL WIDTH (MM) +0 / -0.120
  • TOLERANCE OUTER RING WIDTH (MM) +0 / -0.120
  • OUTER RING CORNER RADIUS MIN. MM (INCH) 3
  • SIDE PLATE OD (A) MM (INCH) 38
  • RADIAL CLEARANCE 0.010 to 0.030
  • BORE DIAMETER MILLIMETERS (INCH) 20
  • OVERALL WIDTH MM (INCH) 20
  • OD MM (INCH) 47
