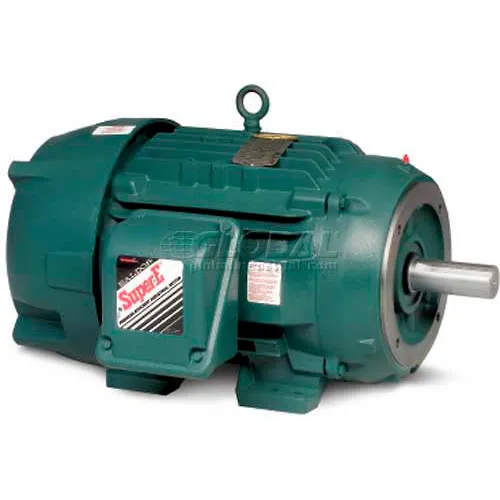

Baldor-Reliance Severe Duty Motor, CECP4103T, 3 PH, 25 HP, 230/460 V, 1770 RPM, TEFC, 286TC Frame

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, CECP4103T, 3 PH, 25 HP, 230/460 V, 1770 RPM, TEFC, 286TC Frame

Item #: WBB910151

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$4,684.00 up to 27% OFF

Price: $3,442.00

$573.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, CECP4103T, 3 PH, 25 HP, 230/460 V, 1770 RPM, TEFC, 286TC Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • Super-E premium efficient motor
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
Application(s)
  • Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.

  • HORSEPOWER 25
  • ENCLOSURE TEFC
  • FRAME 286TC
  • BRAND Baldor-Reliance
  • MOTOR RPM 60Hz 1770
  • RPM 1770
  • PHASE 3
  • VOLTAGE 230/460
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6311
  • DUTY Continuous
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • C-DIMENSION INCHES 27.93
  • TYPE Severe Duty Motor
  • MANUFACTURER PART # CECP4103T
  • FL AMPS 60/30
  • DOE-CODE 010A
  • BALDOR CATALOG NUMBER CECP4103T
  • DESIGN CODE B
  • BEARING-DRIVE-END 6311
  • SPEC. NUMBER 10G297X209G1
  • FL EFFICIENCY 93.6
  • POWER-FACTOR 84
  • KVA-CODE G
  • is_motor Yes
  • 208V AMPS 63.3
