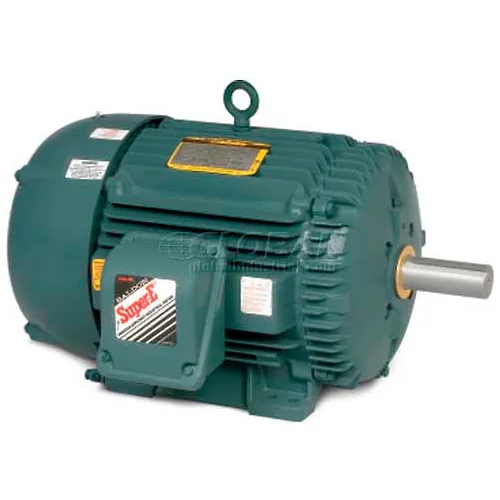

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Item #: WBB909762

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$6,692.00 up to 27% OFF

Price: $4,918.00

$819.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
  • Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
  • Inpro Seal® on fan and drive end shaft extensions
  • 2-part yellow epoxy oxide primer (inside & outside)
  • Gray epoxy paint and corrosion resistant hardware
  • Reduced noise, vibration and mechanical tolerances
  • Final test and vibration results shipped with motor
Application(s)
  • Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.

  • HORSEPOWER 25
  • ENCLOSURE TEFC
  • FRAME 324T
  • BRAND Baldor-Reliance
  • MOTOR RPM 60Hz 1180
  • RPM 1180
  • PHASE 3
  • VOLTAGE 460
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6312
  • DUTY Continuous
  • RPM RANGE 1101-1200
  • INSULATION CLASS F
  • C-DIMENSION INCHES 30.53
  • TYPE Severe Duty Motor
  • MANUFACTURER PART # ECP84111T-4
  • FL AMPS 31.6
  • DOE-CODE 010A
  • BALDOR CATALOG NUMBER ECP84111T-4
  • DESIGN CODE B
  • BEARING-DRIVE-END 6312
  • SPEC. NUMBER 12E599Y445
  • GREASE POLYREX EM
  • FL EFFICIENCY 93
  • POWER-FACTOR 80
  • is_motor Yes
  • KVA-CODE G
  • EFFICIENCY-2 91.7
