Baldor-Reliance Severe Duty Motor, ECP84313T-5, 3 PH, 75 HP, 575 V, 3555 RPM, TEFC, 365TS Frame

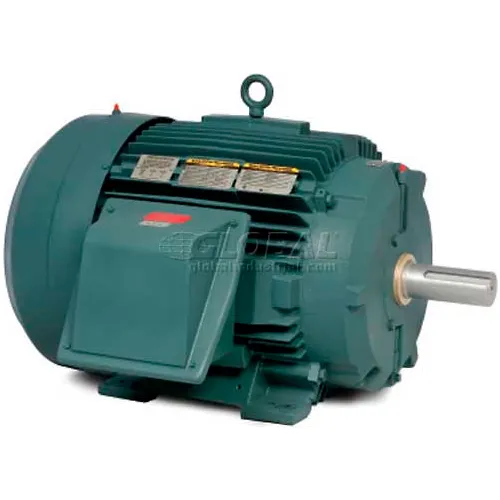

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, ECP84313T-5, 3 PH, 75 HP, 575 V, 3555 RPM, TEFC, 365TS Frame

Item #: WBB909791

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$12,763.00 up to 27% OFF

Price: $9,377.00

$1,562.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, ECP84313T-5, 3 PH, 75 HP, 575 V, 3555 RPM, TEFC, 365TS Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • Built to 841XL design
  • Upgraded electrical and mechanical design with NEMA Premium® efficient winding
  • Inpro/Seal® VBX (thru 210 frame)
  • VBXX bearing isolators on fan and drive end shaft extensions
  • Epoxy paint provides IP56 enclosure
  • Stainless breather drains
  • Proprietary cast iron frames for reduced vibration and noise
  • Terminal lugs on motor leads
  • 5-year warranty
Application(s)
  • Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.

  • HORSEPOWER 75
  • ENCLOSURE TEFC
  • FRAME 365TS
  • BRAND Baldor-Reliance
  • MOTOR RPM 60Hz 3555
  • RPM 3555
  • PHASE 3
  • VOLTAGE 575
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6313
  • DUTY Continuous
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • C-DIMENSION INCHES 31.31
  • TYPE Severe Duty Motor
  • MANUFACTURER PART # ECP84313T-5
  • FL AMPS 64.5
  • BALDOR CATALOG NUMBER ECP84313T-5
  • DESIGN CODE B
  • BEARING-DRIVE-END 6313
  • SPEC. NUMBER P36G5241
  • GREASE POLYREX EM
  • EFFICIENCY-1 95.4
  • FL EFFICIENCY 95
  • POWER-FACTOR 92
  • is_motor Yes
  • KVA-CODE F
  • EFFICIENCY-2 94.5
