Fans found in Kilns and other high ambient environments where long life and high efficiency are desired. These TEAO motors must be mounted with in the airstream for proper cooling. Suitable for use with VFD.

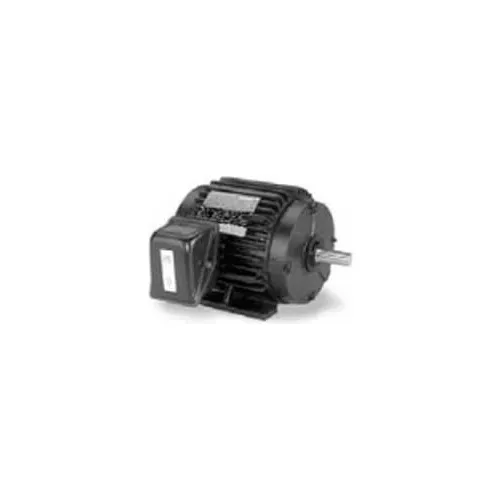

Marathon Motors Severe Duty Motor, S510, 215TTTS17077, 5HP, 460V, 1200RPM, 3PH, 215T FR, TEAO
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$3,099.00
1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 185 lbs |
| Opposite End Bearing Size | 6206 |
| Drive End Bearing Size | 6307 |
Product Details
| 60 Hertz kW | 3.7 kW |
| KVA Code | H |
| IP Code | 54 |
| 60 Hertz RPM | 1200 rpm |
| Motor RPM 60 Hertz | 1200 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | S510 |
| Enclosure | TEAO |
| Service Factor | 1.15 |
| Bearing Drive End | 6307 |
| Brand | Marathon Motors |
| RPM | 1200 rpm |
| Insulation Class | H |
| Horsepower | 5 HP |
| Orientation | Horizontal |
| Frame | 215T |
| Starting Type | Line or Inverter |
| Thermal Protection | Class H Thermostats (Normally Closed) |
| Inverter Speed Range | Variable 20:1 |
| Enclosure Type | Totally Enclosed |
| Voltage | 460 V |
| Full Load Efficiency | 87.5 |
| Full Load Amps | 6.9 FLA |
| Duty | Continuous AOM |
| Ambient Temperature | 90 °C |
| RPM Range | 1101-1200 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | N |
| NEMA Design | B |
| UL | Recognized Construction and Protector |
