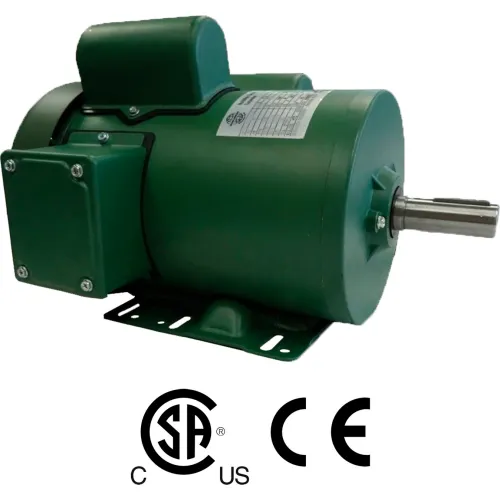

Worldwide Electric FM13-18-56, Farm Duty Motor, 1/3HP, 1800RPM, 56, 115/230V, TEFC
WorldWide Electric, Farm Duty Motor, TEFC enclosure, IP54 degree of protection, High torque, 1.15 service factor, Class F insulation, VPI copper windings, Rigid base-56H, Capacitor start / induction run (1/3-1HP), Capacitor start/capacitor run (1.5-2HP) for reduced amperage and high torque, With manual overload, Drive-end shaft seal, Drive-end bearing retainer, Anti-rust film applied to rotor, Double-sealed ball bearings, Gasketed capacitor covers and junction boxes, Color coded and labeled motor leads.

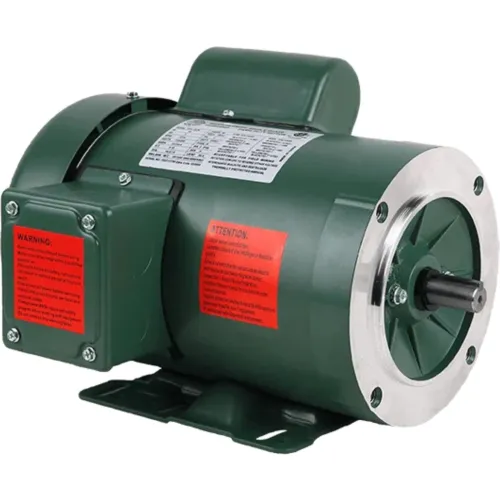

Worldwide Electric FM12-18-56, Farm Duty Motor, 1/2HP, 1800RPM, 56, 115/230V, TEFC
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$345.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 25 |
| Opposite End Bearing Size | 6203 |
Product Details
| Motor RPM 60 Hertz | 1800 rpm |
| Mounting Location | Rigid |
| Power Factor at Full Load | 0.66 |
| Degree of Protection | IP54 |
| Phase | 1 |
| Manufacturers Part Number | FM12-18-56 |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Bearing Drive End | 6203 |
| Brand | Worldwide Electric Corporation |
| RPM | 1725 rpm |
| Insulation Class | F |
| Horsepower | 1/2 HP |
| Efficiency Type | High Efficiency |
| Frame | 56 |
| Temperature Rise | 80 °F |
| Hertz | 60 Hz |
| Enclosure Type | Totally Enclosed |
| Voltage | 115/230 V |
| Full Load Efficiency | 64.5 |
| Full Load Amps | 7.2/3.6 FLA |
| Duty | Continuous |
| Poles | 4 |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Warranty
| Warranty | 24 Months From Invoice |
