Price: $1,218.00
Customers Also Viewed

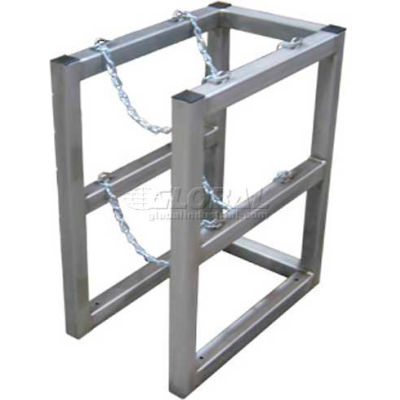

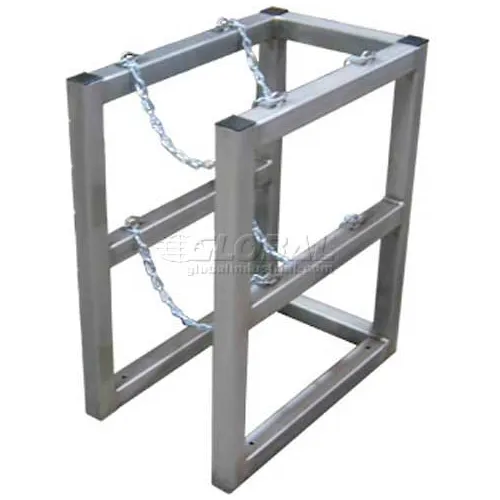

- Holds two cylinders in the vertical position from 4.0 to 12.0 inch diameter All steel, finishing, packaging, and labor made 100% in the USA and Canada
- Constructed from .125 thick 2.0 x 2.0 square Stainless Steel tube, welded, Type 304
- Full perimeter welded and sealed all junction points. Tops ground smooth and capped with HDPE polyethylene caps
- Stainless steel type 316 chains and chain snaps, 2 per cylinder station
- Floor mounting holes included on lower tube structure have .531 inch diameter. For seismic installations, S4 rated anchor bolts, 3/8 inch diameter by 5 inch long are recommended (not included).
- Units qualify for Seismic Zone 4 construction and applications. Racks meet or exceed NFPA, UFC, OSHA, CGA standards for storage of compressed gas cylinders
- Dimensions: 16W. x 26D. x 30H.
- Weight: 82 lbs.
- Ships via freight class 92.5
- Shipping Dimensions (on pallet): 36W. x 36D. x 36H.
- Shipping Weight: 114 lbs.
- WIDTH INCHES 16
- DEPTH INCHES 26
- HEIGHT INCHES 30
- CAPACITY 2 Cylinders
- COLOR FINISH Stainless Steel
- ASSEMBLY Assembled
- BRAND Justrite
- CONSTRUCTION Stainless Steel
- CYLINDER SIZE 4" - 12" Dia.
- MANUFACTURERS PART NUMBER 35088
- PACKAGE QUANTITY 1
- STYLE Stationary
- TYPE Rack
- WEIGHT LBS 82
- APPROVAL/REGULATIONS NFPA, UFC, CGA, OSHA
- LIMITED WARRANTY 1 Year
- GAUGE 11
- STAINLESS STEEL TYPE 304
