Cylinder Tube Rack, 5 Wide x 3 Deep, 70"W x 38"D x 30"H,15 Cylinder Cap.

Cylinder Tube Rack, 5 Wide x 3 Deep, 70"W x 38"D x 30"H,15 Cylinder Cap.

Item #: WBB1170860

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,123.00

$353.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,123.00 or save 5% on purchase.

Quantity

Customers Also Viewed

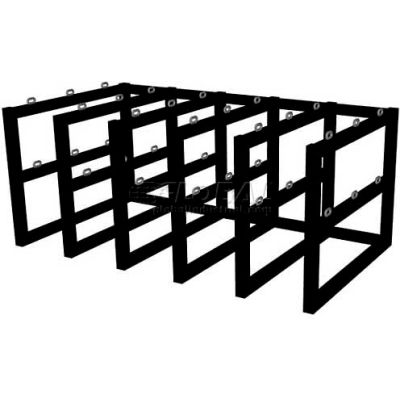

Cylinder Tube Rack, 5 Wide x 3 Deep, 70"W x 38"D x 30"H,15 Cylinder Capacity

  • Holds fifteen cylinders in the vertical position from 4.0 to 12.0 inch diameter All steel, finishing, packaging, and labor made 100% in the USA and Canada
  • Constructed from .125 thick 2.0 x 2.0 square steel tube, welded, Grade ASTM A-500
  • Full perimeter welded and sealed all junction points. Tops ground smooth and capped with HDPE polyethylene caps
  • Powder painted black semi gloss with UV inhibitors and electro-deposition base coat
  • Plated steel chain snaps
  • #2/0 twist loop plated steel chain with welded links included as means of support for cylinders (two per cylinder station)
  • Floor mounting holes included on lower tube structure have .531 inch diameter. For seismic installations, S4 rated anchor bolts, 3/8 inch diameter by 5 inch long are recommended (not included).
  • Units qualify for Seismic Zone 4 construction and applications. Racks meet or exceed NFPA, UFC, OSHA, CGA standards for storage of compressed gas cylinders
  • Dimensions: 70W x 38D x 30H
  • Weight: 294 lbs.
  • Ships via freight class 92.5
  • Shipping Dimensions (on pallet): 72W. x 40D. x 36H.
  • Shipping Weight: 355 lbs.


Product Specifications

  • WIDTH INCHES70
  • DEPTH INCHES38
  • HEIGHT INCHES30
  • CAPACITY15 Cylinders
  • COLOR FINISHBlack
  • ASSEMBLYAssembled
  • BRANDJustrite®
  • CONSTRUCTIONSteel
  • CYLINDER SIZE4" - 12" Dia.
  • MANUFACTURERS PART NUMBER35178
  • PACKAGE QUANTITY1
  • STYLEStationary
  • TYPERack
  • WEIGHT LBS294
  • APPROVAL/REGULATIONSNFPA, UFC, CGA, OSHA
  • LIMITED WARRANTY1 Year
  • GAUGE11
