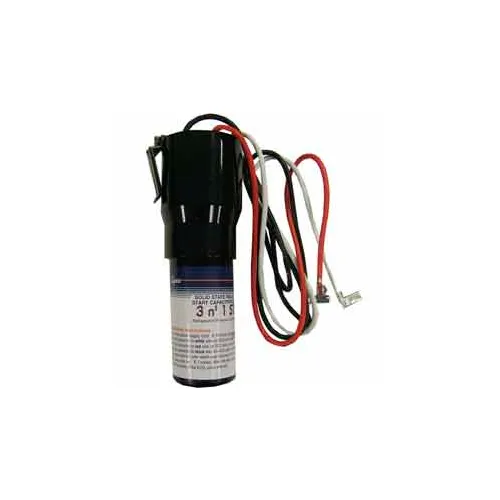

Supco 3 'N 1 Start Relay - 1/4 to 1/3 HP 230V
The 3 n'1 Start Relay adds new life to old refrigerators and freezers by providing an additional boost to the compressor. Replaces all 3 electrical components - relay, overloard and start capacitor on all capillary systems. Completely prewires. Installs qucikly and easily by simply pushing on 3 female pin terminals.
Share
Spec Sheet
Supco 3 'N 1 Start Relay - 1/4 to 1/3 HP 230V
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$32.95
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Width | 2-1/4 in |
| Depth | 2 in |
| Height | 6-1/4 in |
Product Details
| Package Quantity | 1 |
| Description | Universal relay, start capacitor and overload. Use on 1/4 to 1/3 hp compressors. |
| Manufacturers Part Number | RCO420 |
| Brand | Supco |
