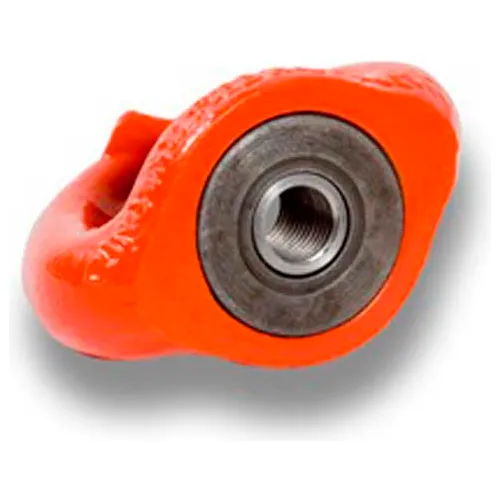

Swivel Eye Nut - UNC 1" - 8

Direct VIP-chain connection. Double ball-bearings is the optimal solution for turning and flipping operations under full load. Lifting points rotates 360 degrees. Large distance between bolt-on surface and load to avoid damage. Rotatable at nominal WLL, 90 degree to the bolt-on direction. Suspension ring with enlarged pivoting area. Available in Metric and UNC thread. Maximum operation temperature range WITHOUT reduction of WLL-40 to 200 Celsius. Maximum operation temperature WITH reduction of WLL up to 400 degrees Celsius.

All components are alloy steel, Quenched and Tempered Rated at 100% at 90° angle Individually proof-tested to 2-1/2 times the Working Load Limit with certification and Statistically Magnetic Particle inspected Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles Marked with a Product Identification Code (PIC) for traceability, top washer is marked with Working Load Limit and recommended torque value 360° swivel and 180° pivot action Satisfies ASME B30.26 requirements

CM® Weblok Assembly 867020-4 Synthetic to Attachment 5/8" 12500 Lbs Capacity When working with synthetic slings, CM Weblok assemblies allow for quick, easy and safe sling attachment. CM Webloks are available in two designs. Synthetic-to-attachment Webloks combine our industry-leading CM Hammerlok® coupling link with a CM synthetic sling attachment. Synthetic-to-synthetic Webloks feature two synthetic sling attachments. CM Webloks are available with either single or double load pin retention, depending on your application. For use with round slings, web slings and high-performance ...

All components are alloy steel, Quenched and Tempered Rated at 100% at 90° angle Individually proof-tested to 2-1/2 times the Working Load Limit with certification and Statistically Magnetic Particle inspected Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles Marked with a Product Identification Code (PIC) for traceability, top washer is marked with Working Load Limit and recommended torque value 360° swivel and 180° pivot action Satisfies ASME B30.26 requirements

All components are alloy steel, Quenched and Tempered Rated at 100% at 90° angle Individually proof-tested to 2-1/2 times the Working Load Limit with certification and Statistically Magnetic Particle inspected Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles Marked with a Product Identification Code (PIC) for traceability, top washer is marked with Working Load Limit and recommended torque value 360° swivel and 180° pivot action Satisfies ASME B30.26 requirements
