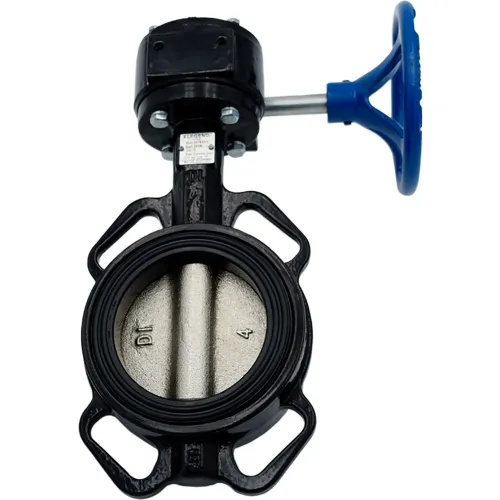

Legend Valve® T-335DI-G Butterfly Valve with EPDM Seals & Gear Operator, 6" Wafer

8" T-337DI-G Ductile Iron Wafer Type Butterfly Valve with BUNA Seats, DI Disc, Gear Operated Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Features: Cold Working Pressure (CWP): 200 psi Special order disc options: T-335DI & T-337DI: Ductile iron disc Flange connection features of the valve's body conform to ANSI class 125/150 flange ...

3" T-335AB-G Ductile Iron Wafer Butterfly Valve. Features: Epoxy coated wafer body allows easy positioning between flanges Extended neck will clear most piping insulation applications Bi-directional flow 100% factory tested Aluminum Bronze Disc EPDM Seats Rigid, phenolic-backed seat allows positive, bubble-tight shutoff Raised seat face eliminates the need for companion flange gaskets Equipped with a pre-installed gear operator and handwheel Cold Working Pressure (CWP): 200 psi Working Steam Pressure (WSP): 125 psi Compatible with steam up to 250° F at 125 psi or less Flange ...

6" T-335SS Ductile Iron Wafer Butterfly Valve, Stainless Steel Disc, 10 Position Lever Handle -EPDM Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets . Heavy-duty lockable ten-position lever handle. Features: Cold Working Pressure (CWP): 200 psi Special order disc options: T-335SS & T-337SS: 316 Stainless steel disc Flange connection ...

6" T-335DI Butterfly Valve. Features: Epoxy coated wafer body allows easy positioning between flanges Extended neck will clear most piping insulation applications Bi-directional flow 100% factory tested Ductile Iron Disc EPDM Seats Rigid, phenolic-backed seat allows positive, bubble-tight shutoff Raised seat face eliminates the need for companion flange gaskets Heavy-duty lockable ten-position lever handle Cold Working Pressure (CWP): 200 psi Flange connection features of the valve's body conform to ANSI class 125/150 flange dimensions Manufactured in conformance to the following ...

2-1/2" T-337AB-G Ductile Iron Wafer Butterfly Valve, Aluminum Bronze Disc, Gear Operated -BUNA Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets . Features: Cold Working Pressure (CWP): 200 psi Maximum service temperatures with pressures: T-337AB & T-337AB-G: Compatible with media types other than steam up to 180° F at 200 psi or ...
