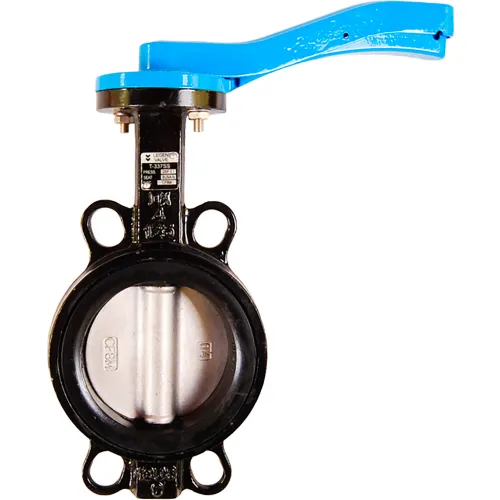

Legend Valve® T-337SS Butterfly Valve with Buna Seals & 10 Position Handle, 6" Wafer

2-1/2" T-337SS Ductile Iron Wafer Butterfly Valve, Stainless Steel Disc, 10 Position Lever Handle -BUNA Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets . Heavy-duty lockable ten-position lever handle. Features: Cold Working Pressure (CWP): 200 psi Special order disc options: T-335SS & T-337SS: 316 Stainless steel disc Flange connection ...

2" T-335AB Ductile Iron Wafer Butterfly Valve. Features: Epoxy coated wafer body allows easy positioning between flanges Extended neck will clear most piping insulation applications Bi-directional flow 100% factory tested Aluminum Bronze Disc EPDM Seats Rigid, phenolic-backed seat allows positive, bubble-tight shutoff Raised seat face eliminates the need for companion flange gaskets Heavy-duty lockable ten-position lever handle Cold Working Pressure (CWP): 200 psi Working Steam Pressure (WSP): 125 psi Compatible with steam up to 250° F at 125 psi or less Flange connection ...

3" T-335DI Butterfly Valve. Features: Epoxy coated wafer body allows easy positioning between flanges Extended neck will clear most piping insulation applications Bi-directional flow 100% factory tested Ductile Iron Disc EPDM Seats Rigid, phenolic-backed seat allows positive, bubble-tight shutoff Raised seat face eliminates the need for companion flange gaskets Heavy-duty lockable ten-position lever handle Cold Working Pressure (CWP): 200 psi Flange connection features of the valve's body conform to ANSI class 125/150 flange dimensions Manufactured in conformance to the following ...

5" T-337DI Ductile Iron Wafer Type Butterfly Valve with BUNA Seats, DI Disc, 10-Position Handle. Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Heavy-duty lockable ten-position lever handle. Features: Cold Working Pressure (CWP): 200 psi Special order disc options: T-335DI & T-337DI: Ductile iron disc Flange connection features of ...

4" T-337AB Ductile Iron Wafer Butterfly Valve, Aluminum Bronze Disc, 10 Position Lever Handle -BUNA Epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets . Heavy-duty lockable ten-position lever handle. Features: Cold Working Pressure (CWP): 200 psi Maximum service temperatures with pressures: T-337AB & T-337AB-G: Compatible with media types ...
