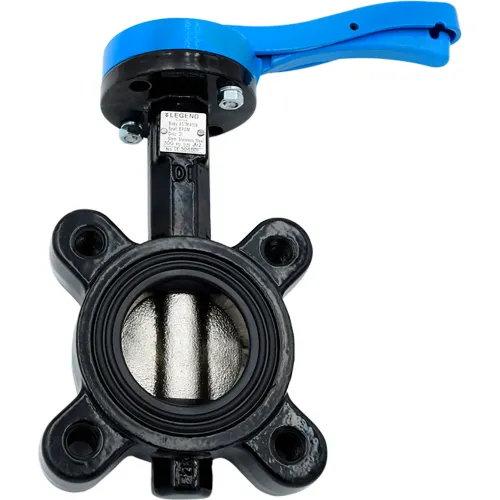

Legend Valve® T-367DI Butterfly Valve with BUNA Seals & 10 Position Handle, 12" Lug

12" T-367DI-G Ductile Iron Lug-Type Butterfly Valve Epoxy coated lug body allows precise positioning between flanges. Tapped lugs and supported seat permit single-flange, "dead-end" service. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% Factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Features: Cold Working Pressure (CWP): 200 psi Ductile iron disc BUNA Seal Gear Operated Flange connection features of the valve's body conform to ANSI class ...

8" T-367SS Lug-Type, Ductile Iron Butterfly Valve Epoxy coated lug body allows precise positioning between flanges. Tapped lugs and supported seat permit single-flange, "dead-end" service. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% Factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Heavy-duty lockable ten-position handle Features: Cold Working Pressure (CWP): 200 psi 316 Stainless steel disc Flange connection features of the valve's body ...

4" T-367AB Ductile Iron Lug-Type Butterfly Valve Epoxy coated lug body allows precise positioning between flanges. Tapped lugs and supported seat permit single-flange, "dead-end" service. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% Factory tested. Rigid, phenolic-backed seat allows positive, bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Heavy-duty lockable ten-position handle Features: Cold Working Pressure (CWP): 200 psi Aluminum Bronze disc BUNA Seal Compatible with media types other than steam up ...

6" T-365AB Ductile Iron Lug Type Butterfly Valve. Features: Aluminum Bronze Disc EPDM Seats Epoxy coated lug body allows precise positioning between flanges Tapped lugs and supported seat permit single-flange, "dead-end" service Extended neck will clear most piping insulation applications Bi directional flow 100% Factory tested Rigid, phenolic-backed seat allows positive, bubble-tight shutoff Raised seat face eliminates the need for companion flange gaskets Heavy-duty lockable ten-position handle Cold Working Pressure (CWP): 200 psi Working Steam Pressure (WSP): 125 psi Compatible ...

10" T-365DI Butterfly Valve. Features: Ductile Iron Disc EPDM Seats Epoxy coated lug body allows precise positioning between flanges Tapped lugs and supported seat permit single-flange, "dead-end" service Extended neck will clear most piping insulation applications Bi directional flow 100% Factory tested Rigid, phenolic-backed seat allows positive, bubble-tight shutoff Raised seat face eliminates the need for companion flange gaskets Heavy-duty lockable ten-position handle Cold Working Pressure (CWP): 200 psi Flange connection features of the valve's body conform to ANSI class 125/150 ...
