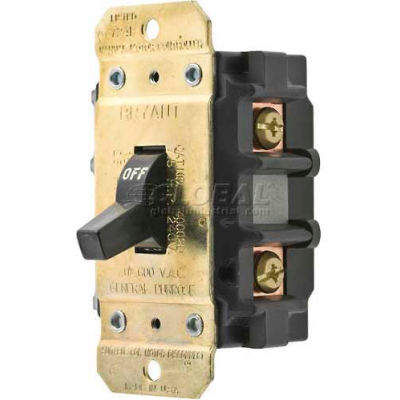

Toggle Switch 40 AMP, 2 Poles Disconnect Switch

Toggle Switch 40 AMP, 2 Poles Disconnect Switch

Item #: WBB864057

(1)

Ships same day. ? Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

Enter zip code for delivery date estimate

Shipping to 10465 change

Original Price: $53.95

Clearance Price: $35.87

Save $1.79 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Ideal motor controller suitable as a disconnect. Toggle motor controllers/disconnects can be built into equipment and enclosures with either box or panel-mount installation. Strong on/off action with quick-make,slow break operation provides long-life reliability; 10,000 amp high fault short circuit withstand rating. It has a high temperature thermoset body and optional side guard for lose wall applications and finger safe environmetns.

  • BRAND Bryant
  • MAX VOLTAGE 600V AC RMS
  • ELECTRICAL LIFE 6,000 CYCLES AT RATED SWITCH LOAD
  • DIELECTRIC VOLTAGE 2,200V AC MINIMUM FOR 1 MINUTE
  • BOX ENCLOSURE --
  • AMPS 40
  • SHORT CIRCUIT WITHSTAND RATING AS MOTOR DISCONNECT 60A MAX J FUSES 10,000 RMS
  • UL LISTING UL 508 Industrial Control Equipment File # E70402
  • 600V AC 15
  • 480V AC 10
  • 240V AC 5
  • TERMINAL TORQUE 20 INCH POUNDS
  • TERMINAL ACCOMODATIONS AWG MIN. #14 - AWG MAX. #8
  • FLAMMABILITY UL94HB/VO
  • DEPTH INCHES 2.43
  • CSA LISTING CSA-C22.2 No. 14 Industrial Control Equipment File # LR-46186
  • 120V AC 2
  • PRODUCT TYPE Motor Control SW T
  • POLES 2
  • WEIGHT LBS 0.45
  • LENGTH INCHES 3.78
  • WIDTH INCHES 2.25
  • PHASE 1
  • OPERATING TEMPERATURES MAX. CONTINUOUS 60 DEG. C., MIN. CONTINUOUS W/OUT IMPACT -40 DEG C.
  • SHORT CIRCUIT WITHSTAND RATING AS MOTOR CONTROLLER 125A MAX RK5 FUSES
