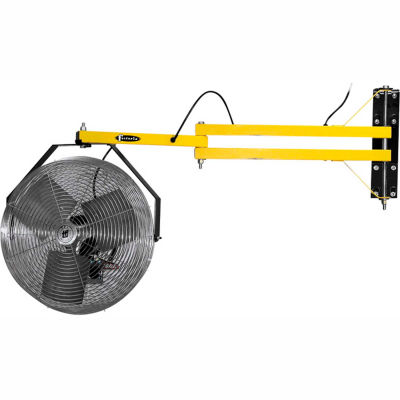

This 18" fan is the perfect solution to dissipate heat and reduce the stuffiness of shipping areas, especially when unloading a trailer. 3-speed, 115V motor moves air at 1,980/2,200/2,500 CFM. Heavy-duty fan features chrome-plated guards and a totally enclosed, permanently lubricated motor. Fan conveniently plugs into the outlet on the dock arm. cETLus ,cETL Listed.
Features:
Features:
- 2.2A, 115V, single phase, 1/8 HP, permanently lubricated, totally enclosed PSC motor
- Three speed settings for airflow rates up to 2,500 cubic feet per minute (CFM)
- Coated steel guards and aluminum blades
- Fan plugs into electric outlet on arm
- 60" long dock arm
- Mounting arm constructed of heavy-duty 1-1/2" square, 11-gauge steel tubing
- 5' long 18/3 SJTW cord and NEMA 5-15 grounded plug
- Made in U.S.A
Weights & Dimensions
- Fan Diameter 18 in
- Length 60 in
- Weight 44 lbs
Product Details
- CFM Medium 2200 CFM
- Number of Blades 3
- Number of Speeds 3
- Blade Type Aluminum
- Mounting Location Wall
- Assembly Required Unassembled
- Amperage 2.2 A
- Type Dock Fan
- For Use With Truck Cooling, Pick Modules, Tight Spaces
- Material Steel
- CFM Low 1,980 CFM
- Voltage 115 V
- Description Triple Arm Fan
- Horsepower 1/8 HP
- Phase 1
- Motor Type Totally Enclosed
- CFM High 2500 CFM
- Oscillating/Non Oscillating Non-Oscillating
- Power Cord Type SJT 3 Conductor
- Watts 253 W
- Brand TPI
- Max Ambient Temperature 104 °F
- Hertz 60 Hz
- Manufacturers Part Number 8009302
- Color Family Yellow
- Fan Type Industrial
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications ETL, cETL Listed
