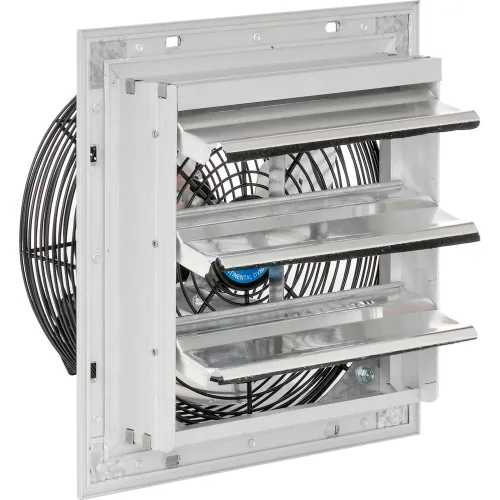

Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring, UL, cUL listed and conforms to UL507 standard. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2" (+/- 5/16) larger than fan blade size. The product has a limited warranty of 1 year.
Weights & Dimensions
- Rough Opening 10-1/2 in
- Width 13-1/2 in
- Fan Diameter 10 in
- Cord Length Not Included ft
- Height 13-1/2 in
- Depth 6-1/2 in
- Weight 11 lbs
Product Details
- Number of Blades 3
- CFM Medium 1100 CFM
- Mounting Location Inside Wall
- Number of Speeds 3
- Assembly Required Unassembled
- Amperage 0.38 A
- Drive Type Direct Drive
- Material Aluminum
- CFM Low 950 CFM
- RPM High 1,500 rpm
- Voltage 120 V
- Horsepower 1/30 HP
- Housing Material Steel
- CFM High 1500 CFM
- Power Cord Type Hard Wire
- Watts 45 W
- Brand CD
- Max Temperature 104° F °F
- Decibels 59
- Color Family Black
Compliance & Certifications
- Certifications UL, cUL listed, OSHA & UL507 Compliant
⚌
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: KEN
Date: March 01, 2022
-
Reviewer: MARK
Date: July 30, 2020
Your review:
The 3 speeds are a must. Spend the extra to get it. The fan works great. The shutter opens almost all the way on high speed. It is not too loud. -
Reviewer: Lewis
Date: May 14, 2020
Your review:
Perfect. And the service is beyond expectations! -
Reviewer: LTJack
Date: May 11, 2020
Your review:
not as much atr flow as is required but making do with it.... for now -
Reviewer: JOHN
Date: April 20, 2020
Your review:
works fine just wish the shutters sealed better. I rigged a weight system to hold them closed but there is still a draft when windy. Otherwise works as advertised. -
Reviewer: Anonymous
Date: October 27, 2018
Your review:
very satisfied. I wired this with a cord (not included) and plugged in an outlet -
Reviewer: Anonymous
Date: October 07, 2016
Your review:
does what it says it do's -
Reviewer: Anonymous
Date: February 22, 2016
Your review:
good product -
Reviewer: Anonymous
Date: May 07, 2015
Your review:
We are very happy with this product and would recommend it. -
Reviewer: Anonymous
Date: March 27, 2015
Your review:
easy to install. great
Product Q & A
There are 6 questions and 6 answers for this product.
-
How much square feet does this fan cover, does the fan bring a control switch for the three speeds
Question Asked By: Daniel, July 23, 2020
Answer This Question
Question Answered By:
-
Product Expert, July 23, 2020
Hello, this unit covers an estimated 1200 St. Ft. The speeds are operated by a pull chain switch. Thank you for your question.
-
-
Is this fan sufficient for my garage apprx 21Lx20Wx11H? The opening between the 2x4 wood studs is approx. 14.5". The exterior wall of the garage is 1/8" particle board and then siding.
Question Asked By: Phil, August 12, 2019
Answer This Question
Question Answered By:
-
Product Expert, August 12, 2019
For a room that size, we recommend using 2 of these fans for complete coverage. Thank you for your question.
-
-
The livable upstairs area of my cape cod style home requires ventilation. The upstairs is about 700-900 square feet. Would this fan be sufficient? Do I need to install additional forms of ventilation on the opposing wall to increase air flow? The exterior shutters of this model only come in silver. Can the shutters be painted?
Question Asked By: Emily, July 15, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Emily, This would be to small for your home, you would need to use our 12" version Global model number 294495A. http://www.globalindustrial.com/p/hvac/exhaust-fans/exhaust-and-supply/tpi-exhaust-fan-12-in-with-shutter-3-speed I have forwarded this query to our sales team as they can provide additional detail. Thank you for your interest in our product
-
-
what is direction of air flow and can it be reversed
Question Asked By: MIKE, May 12, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Mike, Air is sucked through the motor side and blown out of the shutter side. No, the direction cannot be reversed. Thank you for your interest in our product!
-
-
what is the measurement from the back of the fan to the mounting housing
Question Asked By: Andrew , June 20, 2016
Answer This Question
Question Answered By:
-
anonymous
Hello Andrew, The measurement from the back of the fan to the mounting housing is about 6 inches. Thank you for your interest in our product!
-
-
Do the shutters open and close when the fan is turned on and off, or are they fixed?
Question Asked By: Jim, February 09, 2016
Answer This Question
Question Answered By:
-
Product Expert, February 09, 2016
The shutters open and Close when the fan is turned on and off
-
Accessories
Warranty
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
Continental Dynamics® Direct Drive 10" Exhaust Fan W/ Shutter, 3 Speed, 1500CFM, 1/30HP, 1Phase
