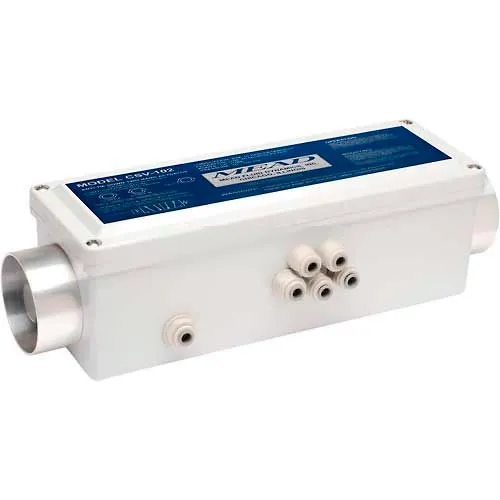

Bimba-Mead Two Hand Control CSV-102W, Cv=1.00 Washdown

Bimba-Mead Two Hand Control CSV-102W, Cv=1.00 Washdown

Item #: WBB571665

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,024.00

$170.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Bimba-Mead Two Hand Control CSV-102W, Cv=1.00 Washdown

For Safer Operation of Your Machinery CSVs are two-hand anti-tiedown controls. When used, they provide safer operation of air presses, drill fixtures, clamping fixtures, cylinders, valves, or light assembly equipment. CSV-102W has compact and completely self-contained controls, recessed actuation buttons built in the ends and a universal mount for convenient positioning. Function of CSV's Concurrent actuation of the recessed buttons generates a signal. Releasing one or both buttons immediately stops the signal which cannot be re-instituted until both buttons are again actuated concurrently. Push-to-connect fittings included. Complete power package containing a 4-way power valve (Cv=1.00) for direct actuation of single-acting or double acting air cylinders. Actuation sends a sustained air flow to one cylinder port. Releasing one or both buttons shifts the flow to the other cylinder port. Built-in mufflers reduce sound levels. CSVs are designed for use in a wash-down environment. The units provide the same pilot and power functionality of the CSV-102. The logic circuitry is housed in a fiberglass industrial control panel enclosure, providing excellent chemical and corrosion resistance.

  • LENGTH INCHES 12-13/16
  • WIDTH INCHES 4-5/32
  • HEIGHT INCHES 4-1/2
  • BRAND Bimba-Mead
  • MANUFACTURERS PART NUMBER CSV-102W
  • PORT SIZE (6) 1/4" NPTF
  • BUTTONS Rubber
  • BUTTON GUARDS Aluminum
  • FITTINGS Chrome Plated Brass
  • FUNCTION Direct Actuation of Air Cylinder or Air Press
  • OPERATING PRESSURE RANGE 70-100 PSI
