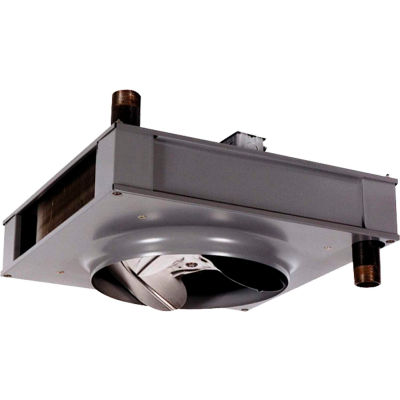

Beacon/Morris® Vertical Hydronic Unit Heater, 254900 BTU - VB317

317,000 BTU vertical hydronic unit heater, approved for water/steam commercial/industrial applications, 20 gauge steel casing, rectangular 3 or 4 sided single pass, multi circuit seamless copper tubing coils with aluminum fins mechanically bonded, coils submersion tested to 375 psi, field convertible for low outlet.

Weights & Dimensions

  • Width 40 in
  • Fan Diameter 25-1/4 in
  • Heat Spread 45 ft
  • Length 40 in
  • Height 18 in
  • Pressure Drop ft/h20 6.88
  • Condensate Pounds per Hour 345 lbs
  • Weight 138 lbs

Product Details

  • Outlet Velocity 1500 ft/min
  • Assembly Required Assembled
  • Discharge Vertical
  • Input (BTU/H) 2 lb Steam 60°F Entering Air 333400 BTU/hr
  • RPM 1140 rpm
  • Type Hydronic Heater
  • Output (BTU) Hot Water 200°F In 60°F Entering Air 254900 BTU
  • Steam Final Air Temperature 119 °F
  • Material Steel
  • Equivalence Of Direct Radiation 1390 ft²
  • Voltage 120 V
  • Horsepower 3/4 HP
  • CFM High 5210 CFM
  • Phase 1
  • Brand Beacon-Morris
  • Manufacturers Part Number VB317
  • Water Flow 35.03 gal/min
  • Hot Water Final Air Temperature 105.1 °F
  • Color Family Gray

Warranty

  • Warranty 1 yr

Compliance & Certifications

  • Certifications ETL, ETLc
