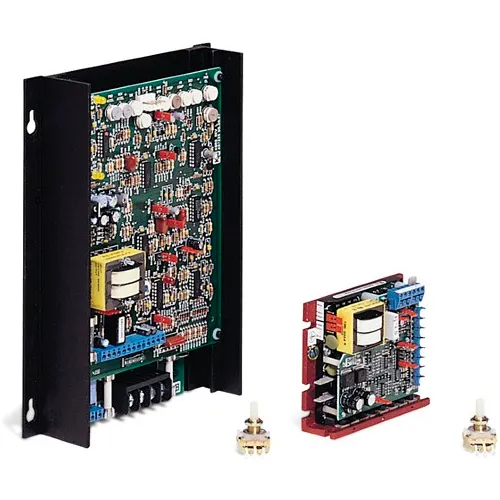

- BC154, BCWD140 and BC160 are non-regen controls with reversal by means of switching the armature leads (BCWD140 has a forward/brake/ reverse switch mounted).
- BC254 is a line regenerative SCR control that can drive the motor to a timed stop.
- BC354 is a PWM control that provides lowripple DC power to the motor allowing more Hp when used with a 130 or 260 VDC motor.
- All offer a choice of armature or tachometer feedback and a speed or torque mode.
- No Hp resistors are needed for these controls, current is jumper selectable.
- BC154, BC160, BC254 and BC354 are painted black and come with a start-stop switch.
- BCWD140 comes with white epoxy paint and also forward/ brake/reverse and run-jog switches. See page 330 for features.
- Constant torque, new or replacement.
