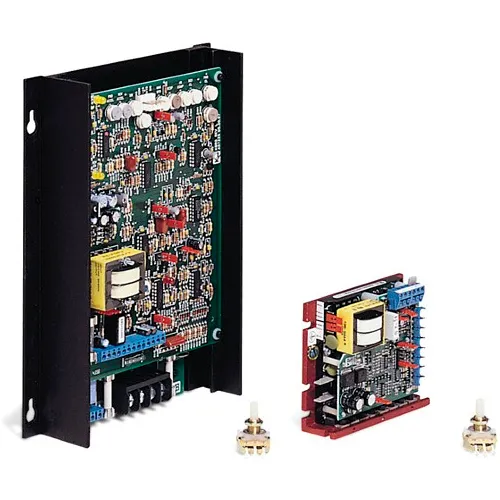

Baldor-Reliance Washdown Duty Line Regen Speed Control, BC254-FBR, NEMA 4X, 1/8-2 HP Range

Regen controls are designed to easily operate the motor in forward and reverse directions without motor lead reversal. A separate set of SCRs is used for each direction. With a regen control, stopping is controlled by using the motor's regenerated voltage sent back to the AC line.

Features

• Field power supply allows use with shunt wound DC motors as well as permanent magnet motors
• Adjustable accel, decel, current limit, IR comp, min and max speed
• Current limit indicating LED
• 5K speed pot for speed control
• Anti-demag circuit protects PM motors and helps protect the SCR power bridge against direct shorts
• Noise rejection circuit eliminates false starts and blown SCR's
• UL and cUL recognized

Application(s)

• Conveyors, mixers, packaging machinery and other applications requiring variable speed and constant torque.
