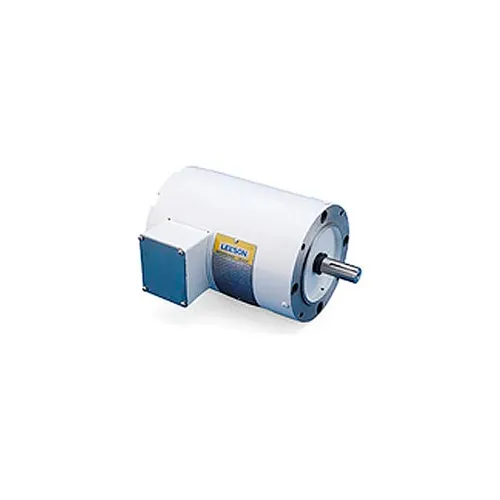

Leeson Motors Motor Washdown Motor-3/4HP, 208-230/460V, 1725RPM, TENV, C FACE, 1.15 SF, 80 Eff

Washguard White Epoxy Coated Motor, 3-Phase: 1/2HP, 1725 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, RIGID C, 575V, 3PH, 60HZ, Name Plate Amps .8, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 74, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length: 1-7/8, Shaft Diameter: 5/8. Enhanced performance in wet, humid areas Durable RUST-OLEUM® white epoxy coating Stainless steel shaft, conduit box cover, nameplate, fan guard Special gaskets, slingers and seals Four endshield drains Moisture-resistant interior components Meets IP55 ...

Premium Washguard All-Stainless Washdown Motors, Single-Phase: 1/3HP, 1725 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 56H Frame, RIGID C, 115/208-230V, 1PH, 60HZ, Name Plate Amps 5.4/2.7, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 72, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length: 1-7/8", Shaft Diameter: 5/8". Maximum service in critically clean or corrosive environments All exterior components of stainless steel Endshields o-ring sealed to frame IEEE 841 severe-duty features standard Meets demanding pharmaceutical ...

Our Product offerings of our Three-phase Washdown Duty Motors includes our original moisture-shedding "Duck" motor, our Premium stainless and SST stainless line, a line of Paint free "Washguard II" motors as well as our Extreme Duck, encapsulated motors.

Premium Washguard All-Stainless Washdown Motors, Single-Phase: 3/4HP, 1725 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 56 Frame, C FACE, 115/208-230V, 1PH, 60HZ, Name Plate Amps 7.6/3.8, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 77, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length: 1-7/8, Shaft Diameter: 5/8. Maximum service in critically clean or corrosive environments All exterior components of stainless steel Endshields o-ring sealed to frame IEEE 841 severe-duty features standard Meets demanding pharmaceutical ...

Washguard II Motor with Stainless Steel Frame: 1/2HP, 1725 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 56 Frame, C FACE, 208-230/460V, 3PH, 60HZ, Name Plate Amps 1.6/.8, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 78.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length: 1-7/8, Shaft Diameter: 5/8. Superior, extended life in severe environments Paint-free exterior stainless frame and conduit box lid, specially processed endshields and conduit box housing Etched stainless steel nameplate Proven WASHGUARD mechanical and electrical ...
