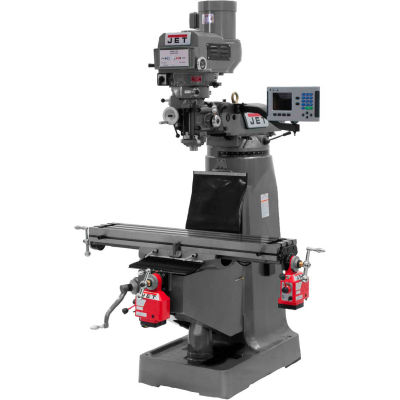

Jet 690068 JTM-4VS-1 Mill W/ACU-RITE 200S 3AXIS QUILL DRO, X & Y POWERFEEDS

Jet 690068 JTM-4VS-1 Mill W/ACU-RITE 200S 3AXIS QUILL DRO, X & Y POWERFEEDS

Item #: WBB230911

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • 1/2" Dia., 1/2" Shank, 1" LOC, 3" OAL, 4 Flute Solid Carbide Ball Single End Mill, AlTiN

    $66.95

  • 1/2" Dia., 1/2" Shank, 2" LOC, 4" OAL, 4 Flute Solid Carbide Single End Mill, AlTiN

    $73.95

  • 3/4" Dia., 3/4" LOC, 3" OAL, 4 Flute Cobalt Single End Fine Roughing End Mill, TiCN

    $81.95

$21,704.26 up to 19% OFF

Price: $17,609.00

$2,934.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Jet® Milling Machines, JTM-4VS MILL With Acu-Rite 200S 3-AXIS Quill DRO, X & Y Powerfeed

Jet® JTM-4VS Milling Machines are ideal for cutting and shaping metal and other material. Motor is 2 HP, 115/230V, 1 Ph, Prewired 230V. Machines feature meehanite casting and satin chrome-finished dials. Chrome-plated motor shaft with lower bearing support. Large-diameter quill is chromed. One-piece quill pinion and shaft. Precision bored and honed milling head. High-precision class 7 spindle bearings. Internally cooled spindle head. Heavy-duty splined motor drive. Three-stage power downfeed with automatic stop. Locks on all movable surfaces. Heavy-duty spindle brake. Precision hardened and ground ways and table. Adjustable gibs throughout. Internal coolant tank built into casting base for use with coolant system (coolant pump not included). One-shot lubrication system. Tolerance test sheet included.

Weights & Dimensions

  • Table Cross Travel 12 in
  • Collet Capacity 1/8 - 7/8 in
  • Table Longitudinal Travel 34 in
  • Quill Diameter 3-3/8 in
  • Table Size (L x W) 9 x 49 in
  • T-Slots Number And Size 3 and 5/8 in
  • T-Slots Centers 2-1/2 in
  • Travel Of Ram 14-1/2 in
  • Travel Of Knee 16 in
  • Distance Spindle To Column 19 (max) in

Product Details

  • Head Movement (Degrees) 90° R & L 45°F & B °
  • Jet Promo 12/6/19 to 12/26/19
  • Motor Voltage 115/230 v
  • Spindle Taper R-8
  • Range of Spindle Speeds 60 - 4200 rpm
  • Motor Horsepower 2 HP
  • Work Table Weight Capacity 660 lbs
  • Number of Spindle Speeds Variable
  • Powerfeed X & Y-Axis
  • DRO Acu-Rite 200S
  • Prewired 230V
  • Phase Single
  • Quill Down Feed Rates (IPR) .0015 - .003 - .006
  • Brand JET
  • Warranty 2-Year Warranty yr
  • Manufacturers Part Number 690068
