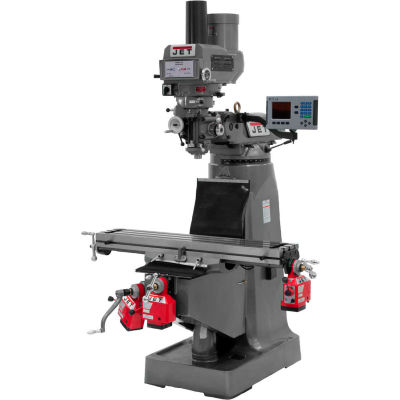

Jet® Milling Machines, JTM-4VS Mill, Acu-Rite 200M, DRO (Quill), X, Y And Z Powerfeeds/Drawbar Installed
Jet® JTM-4VS Milling Machines are ideal for cutting and shaping metal and other material. Machines feature meehanite casting for long lasting durability. Motor is 3 HP, 230/460V, 3 Ph, Prewired 230V. Chrome-plated motor shaft with lower bearing support. Large-diameter quill is chromed. One-piece quill pinion and shaft. Precision bored and honed milling head. High-precision class 7 spindle bearings. Internally cooled spindle head. Heavy-duty splined motor drive. Three-stage power downfeed with automatic stop. Locks on all movable surfaces. Heavy-duty spindle brake. Precision hardened and ground ways and table. Adjustable gibs throughout. Internal coolant tank built into casting base for use with coolant system (coolant pump not included). One-shot lubrication system. Tolerance test sheet, way covers, draw bar and toolbox with tools included.
Jet® JTM-4VS Milling Machines are ideal for cutting and shaping metal and other material. Machines feature meehanite casting for long lasting durability. Motor is 3 HP, 230/460V, 3 Ph, Prewired 230V. Chrome-plated motor shaft with lower bearing support. Large-diameter quill is chromed. One-piece quill pinion and shaft. Precision bored and honed milling head. High-precision class 7 spindle bearings. Internally cooled spindle head. Heavy-duty splined motor drive. Three-stage power downfeed with automatic stop. Locks on all movable surfaces. Heavy-duty spindle brake. Precision hardened and ground ways and table. Adjustable gibs throughout. Internal coolant tank built into casting base for use with coolant system (coolant pump not included). One-shot lubrication system. Tolerance test sheet, way covers, draw bar and toolbox with tools included.
Weights & Dimensions
- Table Cross Travel 12 in
- Collet Capacity 1/8 - 7/8 in
- Table Longitudinal Travel 34 in
- Quill Diameter 3-3/8 in
- Table Size (L x W) 9 x 49 in
- T-Slots Number And Size 3 and 5/8 in
- T-Slots Centers 2-1/2 in
- Travel Of Ram 14-1/2 in
- Travel Of Knee 16 in
- Distance Spindle To Column 19 in
Product Details
- Head Movement (Degrees) 90° R & L 45°F & B °
- Jet Promo 12/6/19 to 12/26/19
- DRO Acu-Rite 200S
- Motor Voltage 230/460 v
- Spindle Taper R-8
- Prewired 230V
- Phase Three
- Brand JET
- Motor Horsepower 3 HP
- Warranty 2-Year Warranty yr
- Work Table Weight Capacity 660 lbs
- Manufacturers Part Number 690153
- Number of Spindle Speeds Variable
- Powerfeed X, Y & Z-Axis
