This 1/2 inch lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).
Share
Spec Sheet

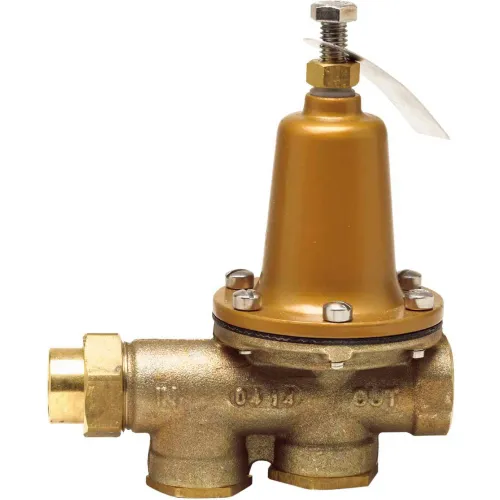

Watts 0009217 1/2" Pressure Reducing Valve LF 25AUB-Z3
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$339.95
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Weight | 4 lbs |
| Size | 1/2 |
Product Details
| Material | Brass |
| Valve Type | Pressure Reducing Valve |
| Max Water Pressure | 300 psi |
| Connection Style | Union x FNPT |
| Manufacturers Part Number | 0009217 |
| Max Temperature | 160°F °F |
| Brand | Watts |
Warranty
| Warranty | 1 yr |
