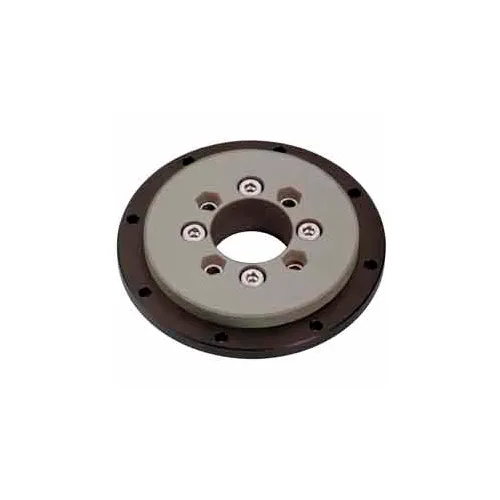

IGUS PRT-02-30-AL 100mm Dia. Slewing Ring Bearing - 5,620 lbs Max Axial Static

An additional DryLin® W solution is a combined rolling and sliding carriage. Because of the defined load direction the required drive force is reduced by a maintenance free roller bearing. This system represents an ideal solution for many hand powered applications under 112 lbs. Ideal for machine tool guards, furniture and aerospace applications. Features: Size (shaft diameter): 10 mm Roller made from plastic Low drive force needed Low cost Diagram Dimension Di - 10-1/5

Special Features: The iglide® Clip2 bearing is a thin-walled bearing made from the iglide® M250 material and which has a beveled edge for extremely simple installations. The diagonal slit helps to compensate for poor housing bore tolerance as well as temperature and humidity changes. Split version of the iglide® M250 bearing Easy assembly by hand Compensation for heat expansion Suitable for ambient temperatures with high humidity Lightweight Very economical Inch and metric sizes available from stock Low bearing clearance, very accurate Maintenance-free and predictable service life

Special properties of the igubal® rod end bearings: Maintenance-free dry operation High stiffening Very high fatigue strength in varying loads Compensation of misalignments Compensation of edge loads Insensitive to dirt, dust and lint balls Resistant to corrosion and chemicals High dampening qualities Suitable for rotary, oscillating and linear movements Very low weight

The DryLin® N series offers extremely low profiles in several widths, and is therefore ideal in tight space constraints. Like all DryLin® products the carriages are designed to glide smoothly on anodized aluminum rails without the need for messy lubricants. They are also available in preloaded versions for reduced running clearance. DryLin® N is a particularly low-cost alternative to miniature ball bearing systems, and is more precise and economical when compared to many custom-machined or simple plastic parts. Small mounting height and width Maintenance-free and self-lubricating High ...

Maintenance-free, dry operation Three sizes Cast zinc chromated carriage Replaceable, wear-resistant iglide® J plastic sliding pads Hard-anodized aluminum rails Small mounting height and width Corrosion Resistant Standard bore pattern symmetrical C5 = C6
