EXHAUST FAN

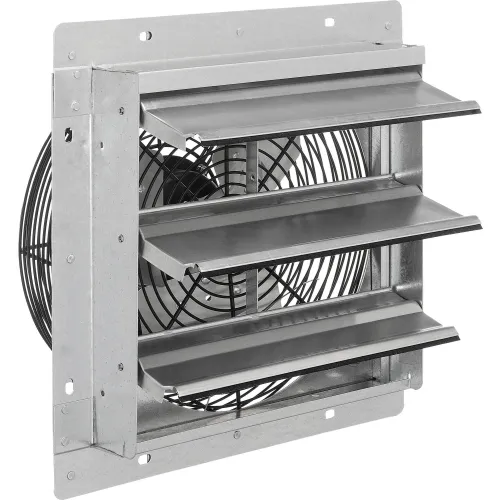

Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed.
1 year limited warranty. Horsepower rating based upon maximum speed/load.
Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed.
1 year limited warranty. Horsepower rating based upon maximum speed/load.
- AMPS 0.55
- APPROVALS OR CERTIFICATIONS UL, cUL listed, OSHA & UL507 Compliant
- ASSEMBLY Unassembled
- BRAND CD
- Base Model Number 294495
- CFM HIGH 2,150
- COLOR Gray
- CONSTRUCTION Steel / Aluminum
- DECIBELS (DBA) 64
- DEPTH INCHES 6-1/2
- DRIVE TYPE Direct
- FAN DIAMETER INCHES 12
- HEIGHT INCHES 15-1/2
- HORSEPOWER 1/12
- LIMITED WARRANTY YEARS 1
- MAX. TEMPERATURE 104° F
- MODEL 294495
- MOUNT TYPE Inside Wall
- POWER CORD LENGTH FEET Not Included
- POWER CORD TYPE Hard Wire
- ROUGH OPENING INCHES 12-1/2
- RPM HIGH 1,500
- SPEEDS 1
- VOLTAGE 120
- WATTS 65
- WEIGHT LBS 16
- WIDTH INCHES 15-1/2
⚌
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: stephen
Date: August 20, 2020
-
Reviewer: Roger
Date: August 02, 2020
Your review:
Very well constructed, Simple to install, A bit expensive but quality construction makes it worth while. Works great. -
Reviewer: LISA
Date: July 11, 2020
Your review:
I did not receive the cover. The Face plate forbwsll cover? Thank you. 202 374 1238 -
Reviewer: SHAWN
Date: June 18, 2020
Your review:
The equipment is well constructed, sturdy design, very easy to install. Arrived on time! Global seems to be well run and on top of orders. -
Reviewer: David
Date: June 17, 2020
Your review:
I work with glues, wood finishes and other chemicals in my basement. The fumes from these materials would make their way up to the first floor and permeate throughout the house. After installing this fan in a basement window near where I do my work, the fumes are cleared out very quickly, making my work area both safer and more pleasant, and never make it to the living areas of my house. the self-closing vents work great, and the fan is reasonably quiet. So far there is nothing I don't like about this fan! -
Reviewer: JAKOB
Date: June 11, 2020
Your review:
Easy to install. Seems to do the job. Occasionally the vent gets stuck open, but is easy to fix. -
Reviewer: NICK
Date: April 18, 2020
Your review:
Yes this product is exactly what I ordered, pricing is right on. I would recommend it to others if they were looking for a similar product -
Reviewer: Jorge
Date: March 23, 2020
Your review:
Very Good Service, shipping and delivery on time. -
Reviewer: KEVIN
Date: January 03, 2020
Your review:
Great exhaust fan as promised.high quality unit. -
Reviewer: Anonymous
Date: September 02, 2019
Your review:
Reliable fan assembly
Product Q & A
There are 7 questions and 7 answers for this product.
-
Can this - or any units similar to this one - be mounted facing up into an attic and still have the shutters close properly when the fan turns off? I want to make sure that the shutters do not stay open all the time since it will be facing up instead of set into a wall facing out.
Question Asked By: William, June 23, 2021
Answer This Question
Question Answered By:
-
Product Expert, September 19, 2019
Hello, the shutters are gravity operated and will close when there is no airflow pushing them open. Thank you for your question.
-
-
Is there an on off switch?
Question Asked By: DOUGLAS, May 19, 2020
Answer This Question
Question Answered By:
-
Product Expert, May 20, 2020
Hello, this unit is requires a hard wire connection. Thank you for your question.
-
-
I purchased this fan in 2015. The motor has stopped. Is there a replacement motor available?
Question Asked By: Robert, July 07, 2018
Answer This Question
Question Answered By:
-
anonymous
Hello Robert, please contact our customer service team at 1.800.645.2986 with your order number for further assistance. Thank you for your inquiry.
-
-
This fan will be used in a ceramics room with two pottery kilns firing at the same time, during the night. This fan will be an extra exhaust for heat and dust particles. Will the mechanism of this particular fan hold up to the room's temperature over 100 degrees. Do I need different selection?
Question Asked By: Caroline, May 14, 2015
Answer This Question
Question Answered By:
-
Product Expert, May 14, 2015
Our Global Exhaust Ventilation Fans are only tested to work in a temperature range of 32°F to 104°F. Any sustained operation above or below that range and we cannot guarantee the longevity of this unit.
-
-
Is the motor for item #294495 a sealed motor?
Question Asked By: May 06, 2014
Answer This Question
Question Answered By:
-
anonymous
This exhaust fan has a totally enclosed motor; however, it is not designed to be used in explosive atmospheres or to be exposed to rain or moisture.
-
-
does this fan have a brushless motor. I intend to use it for a small spray booth
Question Asked By: August 08, 2012
Answer This Question
Question Answered By:
-
Product Expert, August 08, 2012
The CD exhaust fans are made with brushless AC motors. Some of parts and the power supply cord are non-waterproof. The maker recommended not to use the exhaust fans in small spray booths.
-
-
my house is 1000 square ft with 7 ft ceilings. i want to use this or a larger fan to bring in cool night air in the summer. plan to mount fan in back of house 50 ft from front of house ... 20 ft wide. will this work ? What size do i need?
Question Asked By: AL, January 13, 2012
Answer This Question
Question Answered By:
-
Product Expert, January 13, 2012
The space requires approx. 1,750 cfm. The recommended size would be a 12 inch fan which is our model number 294495.
-
