Continental Dynamics
Model # :WB246508

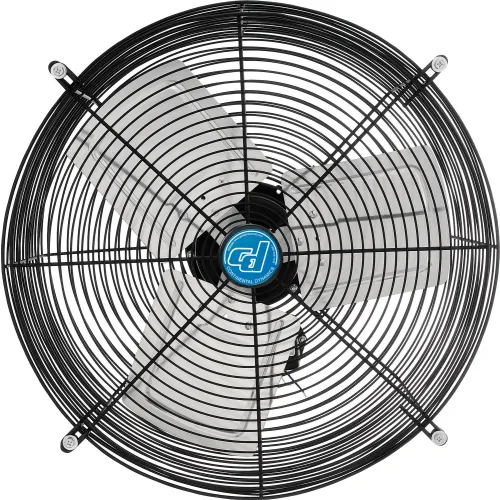

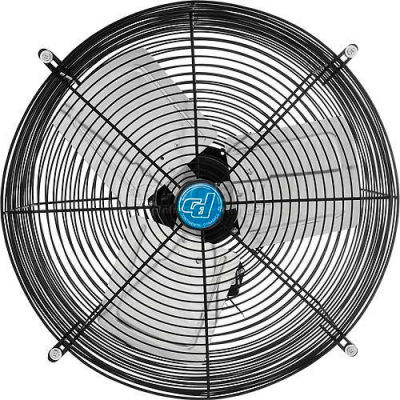

Continental Dynamics® 18" Direct Drive Exhaust Fan, 1 Speed, 5250 CFM, 1/8 HP
|
Questions & Answers (0)
Product Description
The guard mount exhaust fan is designed for low-pressure exhausting and cooling applications. Steel spiral wire guards enclose 3 aluminum fan blades for safety. Wire guards feature built-in mounting holes for easy installation. The 120V, single phase totally enclosed motor is permanently lubricated for long life. It is UL, cUL listed and conforms to UL507 standard.
PROMOTIONAL PRICE
$142.95was $189.95
Save $47.00 (25%)
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 20-1/2 in |
| Width | 20-1/2 in |
| Depth | 5-1/8 in |
| Cord Length | Not Included ft |
| Fan Diameter | 18 in |
Product Details
| RPM | 1500 rpm |
| CFM | 5250 CFM |
| Horsepower | 1/8 HP |
| Number of Speeds | 1 |
| Amperage | 1.25 A |
| Drive Type | Direct Drive |
| Max Temperature | 104° F °F |
| Motor Type | Totally Enclosed |
| Mounting Location | Guard or Wall |
| Wattage | 160 W |
| Voltage | 120 V |
| CFM High | 5250 CFM |
| Power Cord Type | Hard Wire |
| Manufacturers Part Number | 246508 |
| Indoor/Outdoor | Indoor |
| Decibels | 70 |
| Brand | Continental Dynamics |
Compliance & Certifications
| Certifications | UL, cUL listed, OSHA, UL507 |
