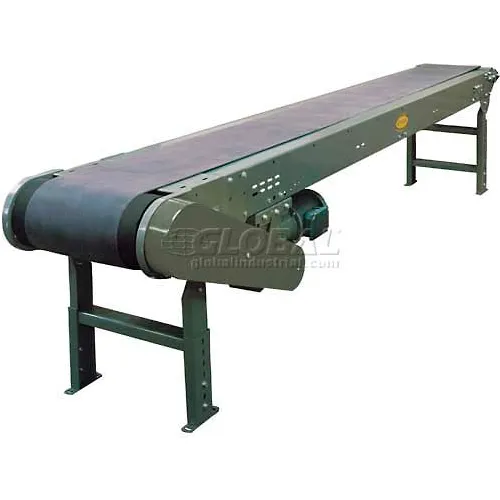

Hytrol® 24"W Model TL Heavy Duty Slider Bed Conveyor, 12'L, 575lb Cap., 65 FPM, 115V

Standard specifications include:

BED - 6-5/8" deep x 12 ga. formed steel Slider Bed is powder coat painted. Reinforced with 3/4" pipe which forms sockets for guard rails.

BELT - Ultimate 140BBS - Nitrile Belt

END DRIVE - Located on discharge end of conveyor, chain guard on left hand side.

DRIVE PULLEY - 8" dia. with 1-3/16" dia. shaft at bearings, machine crowned and fully lagged.

TAIL PULLEY - 6" dia. with 1-3/16" dia. shaft at bearings, machine crowned.

SNUB IDLER - Adjustable 2-1/8" dia. for tail end; 2-1/2" dia. for drive end. Pre-lubricated ball bearings. Guards included.

RETURN IDLER - Adjustable 1.9" dia. pre-lubricated ball bearings.

TAKE-UP - Take-ups at tail pulley. Provides 4" of belt take-up.

BEARINGS - Sealed, pre-lubricated, self-aligning, ball bearings on drive and tail pulleys.

MOTOR - 1 HP 115 - 1 Phase - 60 Hz. Premium Energy Efficient C-Face.

SPEED REDUCTION - Sealed worm gear C-Face speed reducer. No. 50 roller chain to drive pulley.

BELT SPEED - Constant 65 FPM.

CAPACITY - Maximum Load per Linear Foot of conveyor is 100 lbs.

Note: Floor supports are not included; please order separately.

This product is non-cancelable and non-returnable.
