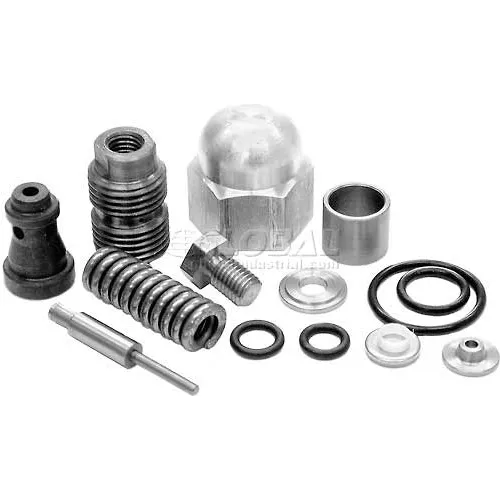

Crossover Valve Kit, Replaces Meyer #15606

All valves are: 12 VOLT, 2.4 Amps Rated to 11 GPM (NON PROPORTIONAL) All ports are #8 SAE Straight thread Valve rated to 4300 PSI with higher pressure main relief (non standard) Main relief 1300-3000 PSI; Set at 2150 PSI Port relief angle 1900-4300 PSI;Set at 2150 PSI Port relief dump 400-1900 PSI;Set at 600 PSI All valves have cylinder spools unless specified as motor.

Have a screwed bonnet, non-rising stem, solid wedge disc, and integral seats Recommended for non-steam use in residential and light commercial applications May be repacked while in service under pressure 200 PSI W.O.G. Non-shock

Priority flow dividers split the oil from a single inlet into two separate flows One is a controlled, adjustable flow which has priority on the oil entering the valve The other is a secondary flow based on oil in excess of that demanded by the priority flow Both flows may be used simultaneously at different pressures without affecting the priority flow rate External adjusting knob controls priority flow rate Load may be applied to either port without affecting priority flow rate

All valves are: 12 VOLT, 2.4 Amps Rated to 11 GPM (NON PROPORTIONAL) All ports are #8 SAE Straight thread Valve rated to 4300 PSI with higher pressure main relief (non standard) Main relief 1300-3000 PSI; Set at 2150 PSI Port relief angle 1900-4300 PSI;Set at 2150 PSI Port relief dump 400-1900 PSI;Set at 600 PSI All valves have cylinder spools unless specified as motor.

Single or Dual flow regulator with built-in on-off control plus system relief and pressure compensated Built-in differential style relief valve and on-off valve in a single compact body Permits easy installation with min. plumbing Detent hand knob for each flow control Easy to adjust flow, 11 positive positions Aluminum body All ports are 3/4" NPT, except 1/2" NPT spinner port Relief cartridge std. setting 1500 PSI (105 bar)
