CCT

Model # :WBB504298

MPN #: 725204WH5B

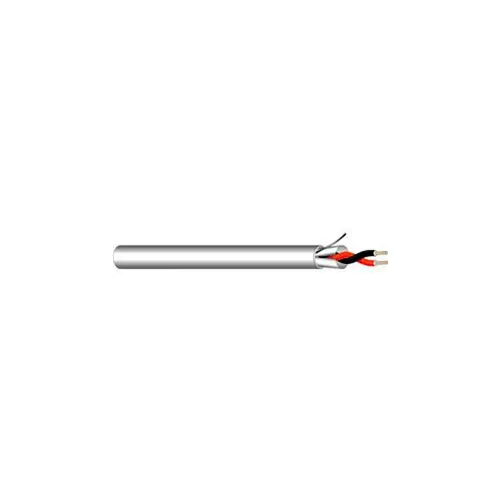

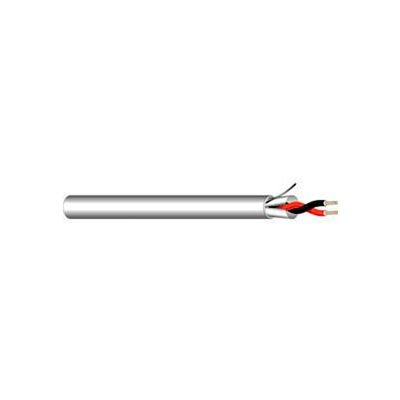

Convergent 725204WH5B 16AWG 2C Stranded Shielded Control Cable Plenum (CMP) 500 Ft. Box White

Product Description
Description
  • Polymer alloy insulation
  • ASTM bare copper
  • Twisted pair construction
  • Polyester binders as required
  • Flexible plenum jacket
  • Overall shield coverage 100% aluminum polyester foil w/TC drain wire
  • Cabled construction
Ratings
  • (UL)-C(UL) Listed or (ETL)us-c(ETL)us Listed
  • NEC Type CMP
  • Meets 300 volt requirements as specified in Article 800 of the NEC
Indoor Applications

Within ducts, plenums and other spaces used for environmental air for:
  • Security Systems
  • Background Music
  • Intercom Systems
  • Sound and Audio
  • Other applications as defined in NEC Article 800 Communications Circuits
PRICE
$149.95

1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Jacket Thickness0.015 in. (0.381 mm.) Nominal
Insulation Thickness0.007 in. (0.177 mm.) Nominal
Weight per 1,000 Feet29 lbs
Nominal Outside Diameter0.180 in. (4.572 mm.) Nominal in

Product Details

Insulation MaterialLow Smoke Polyvinyl Chloride
ColorWhite
Stranding7 Strand
DrainStranded Tin Copper
ShieldAluminum/Polyester Tape(100 Percent Coverage)
Jacket TypeLow Smoke Polyvinyl Chloride
Number of Conductors2 Conductor
Manufacturers Part Number725204WH5B
BrandCCT
