Ideal for applications requiring strong load support in limited mounting area. Solid Zinc die cast housing is non-corrosive and lightweight. Securely retains bearing by pressing the lip 360 degrees over the outer race. Includes 2 set screws.
Flange Mount Bearings are available with housing units made from die-cast zinc, pressed steel and pressed stainless steel. Die-cast zinc housings are non-corrosive and lightweight with either a bronze bearing or ball bearing insert. Pressed steel housings come plated with a rust-proof finish and are available with bronze bearing or ball bearing inserts. Stainless steel housings are USDA/FDA approved and have UHMW-PE bearing inserts and are ideal for wash-down applications in wet or harsh environments. Solid UHMW-PE Bearings are made completely from UHMW-PE and are USDA/FDA approved and are self-lubricating.

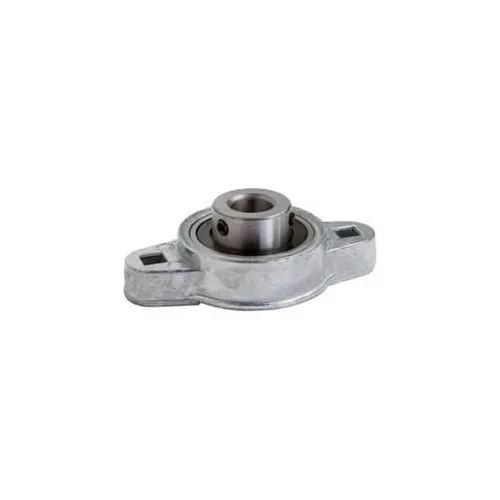

Clesco, 2 Bolt Flange Mount Ball Bearing, F2DC-BL-050, Die Cast Zinc Housing, Rigid, 1/2"ID
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$32.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 0.4 lbs |
| Dimension F | 1-1/16 |
| Bore Diameter | 1/2 in |
| Static Load Rating | 1075 N |
| Dimension A | 3-1/4 |
| Dimension B | 2 |
| Diameter | 1/2" |
| Dimension D | 9/32 Sq |
| Dimension E | 1/2 |
Product Details
| Max Speed | 6000 rpm |
| Type | Rigid |
| Dynamic Load Rating (N) | 2152 |
| Bearing Style | Flange Mount |
| Series | F2DC-BL |
| Description | 2 Bolt Flange |
| Manufacturers Part Number | F2DC-BL-050 |
| Housing Material | Die Cast Zinc |
| Brand | Clesco Bearings |
