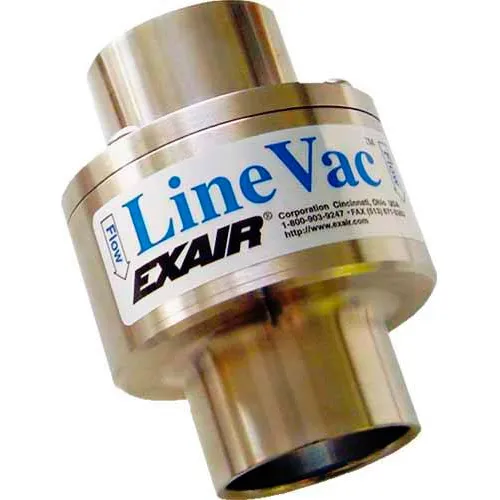

Exair 6064, Compressed Air Operated Line Vac™ Only 6064, Stainless Steel, 45 SCFM, 2" Hose

Line Vac Kits include a Line Vac, mounting bracket, filter separator and pressure regulator (with coupler). EXAIR's® compressed air operated Line Vac connects to standard hose to create a powerful in-line conveyor that can move large volumes of material over long distances. Our standard stainless steel models (Type 303) offer good corrosion resistance and are ideal for food service, abrasive or corrosive applications. Maximum temperature: 800°F (426°C). Applications: Hopper loading Fiber tensioning Material conveying Waste/trim removal Chip removal Part transfer Filling ...

EXAIR's® compressed air operated Line Vac connects to standard hose to create a powerful in-line conveyor material handling system. Unlike belt or screw type conveyor equipment, Line Vac conveyors are ideal for moving large volumes of material over long distances without clogging or jamming. The material flow rate is easily controlled with a pressure regulator. An optional bracket permits easy mounting. No moving parts or electricity assures maintenance free operation. Sizes will fit from 3/8" to 5" inside diameter hose. Aluminum is the economical choice for general purpose conveying. ...

EXAIR® Compressed Air Operated Line Vac™ Kit 6983, Aluminum, 33 SCFM, 1-1/2" Hose EXAIR®'s Compressed Air Operated Line Vac™ Kit connects to standard hose or tube to create a powerful in-line conveyor. The compact design features large throat diameters for maximum throughput capability. Line Vac conveyors are ideal for moving large volumes of material over long distances. A small amount of compressed air is injected through directed nozzles to produce a vacuum on one end and high output flows on the other, with instantaneous response. The material flow rate is easily ...

EXAIR's® compressed air operated Sanitary Flange Line Vac Kits include a Sanitary Flange Line Vac, mounting bracket, filter separator and pressure regulator (with coupler). These Lin Vacs connect to standard clamp style flange fittings to create a powerful in-line conveyor. Flanged Line Vac conveyors are made from Type 316SS and are ideal for moving large volumes of material over long distances. The material flow rate is easily controlled with a pressure regulator. An optional bracket permits easy mounting. No moving parts or electricity assures maintenance free operation. Applications: ...

EXAIR's® compressed air operated Sanitary Flange Line Vac connects to standard clamp style flange fittings to create a powerful in-line conveyor. Flanged Line Vac conveyors are made from Type 316SS and are ideal for moving large volumes of material over long distances. The material flow rate is easily controlled with a pressure regulator. An optional bracket permits easy mounting. No moving parts or electricity assures maintenance free operation. Applications: Hopper loading Fiber tensioning Material conveying Waste/trim removal Chip removal Part transfer Filling operations Advantages: ...
