The 24" 2 speed direct drive exhaust fan can be bolted directly to the wall. The guard mount exhaust fan is designed for low-pressure exhausting and cooling applications to provide optimum performance. Three aluminum fan blades are enclosed in steel spiral wire guards for safety. Built-in mounting holes in guards provide easy installation. The 1/4 HP, 120V, single phase motor is totally enclosed and permanently lubricated for long life, UL, cUL listed and conforms to UL507 standard. Exhaust fans have two speeds with pull chain operation. Includes junction box for direct wiring and built in welded mount brackets. Note: Rough-in hole size is 1/2" (+/- 5/16) larger than fan blade size. Optional wall shutters available. The product has a limited warranty of 1 year.
Continental Dynamics
Model # :WB246620

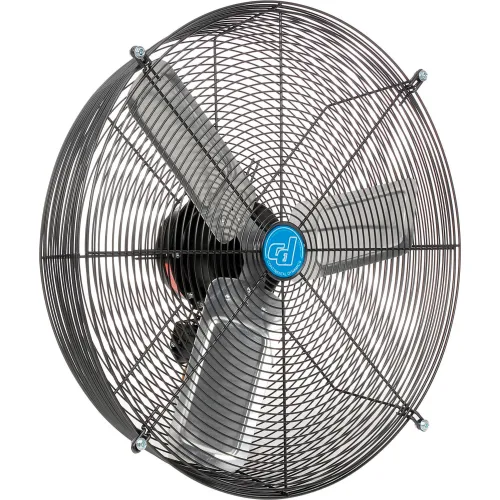

Continental Dynamics® 24" Direct Drive Exhaust Fan, 2 Speed, 7000 CFM, 1/4 HP
|
Questions & Answers (0)
Product Description
PRICE
$285.95
1
1
Ships Same Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 25-3/4 in |
| Width | 25-3/4 in |
| Weight | 38 lbs |
| Cord Length | Not Included ft |
| Rough Opening | 24-1/2 in |
| Fan Diameter | 24 in |
Product Details
| Assembly Required | No |
| Number of Speeds | 2 |
| Max Temperature | 104° F °F |
| Motor Type | Totally Enclosed |
| Mounting Location | Wall |
| Wattage | 245 W |
| Material | Aluminum |
| Phase | 1 |
| Manufacturers Part Number | 246620 |
| Indoor/Outdoor | Indoor |
| Brand | Continental Dynamics |
| RPM | 1140 rpm |
| CFM | 5200/7000 CFM |
| Horsepower | 1/4 HP |
| Amperage | 2.20 A |
| Drive Type | Direct Drive |
| Voltage | 120 V |
| CFM High | 7000 CFM |
| Description | Gurrad Mounted Direct Drive Exhaust Fan |
| Power Cord Type | Hard Wire |
| Housing Material | Steel |
| Decibels | 70 |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | UL, cUL listed, OSHA, UL507 |
