EXHAUST FAN
Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring, UL listed. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size.
1 year limited warranty.

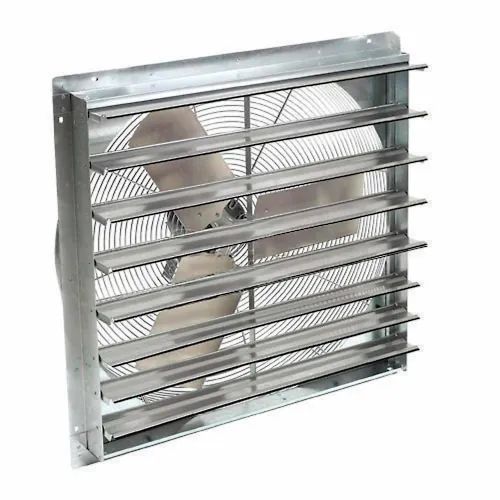

TPI 20" Exhaust Fan Shutter Mounted CE20-DS 1/4 HP 2925 CFM
|
Questions & Answers (0)
Product Description
PRICE
$715.00
1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Width | 23-1/2 in |
| Depth | 6-1/2 in |
| Height | 23-1/2 in |
| Weight | 34 lbs |
| Rough Opening | 20-1/2 in |
| Fan Diameter | 20 in |
Product Details
| Assembly Required | Yes |
| Number of Speeds | 2 |
| Motor Type | Totally Enclosed |
| Mounting Location | Inside Wall |
| Material | Steel / Aluminum |
| Manufacturers Part Number | CE20DS |
| Indoor/Outdoor | Indoor |
| Brand | TPI |
| RPM | 1070/1140 rpm |
| CFM | 2380/2925 CFM |
| Horsepower | 1/4 HP |
| Color | Gray |
| Amperage | 2.30 A |
| Drive Type | Direct Drive |
| Voltage | 120 V |
| CFM High | 2925 CFM |
| Decibels | 65 |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | UL |
