3" x 3" x 0.045" Yellow Sof' Shoe® Elastomer Shim (Pack of 10) - Made In USA

3" x 3" x 0.045" Yellow Sof' Shoe® Elastomer Shim (Pack of 10) - Made In USA

Item #: WBB514056

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $158.95

Save $7.95 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

2" x 2" x 0.020" Blue Sof' Shoe® Elastomer Shim (Pack of 10) - Made In USA

2" x 2" x 0.020" Blue Sof' Shoe® Elastomer Shim (Pack of 10) - Made In USA

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

2" x 2" x 0.045" Yellow Sof' Shoe® Elastomer Shim (Pack of 10) - Made In USA

2" x 2" x 0.045" Yellow Sof' Shoe® Elastomer Shim (Pack of 10) - Made In USA

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

12mm I.D. x 16mm O.D. x 0.50mm Shoulder Screw Lengthening Shim (Pack of 25) - Made In USA

12mm I.D. x 16mm O.D. x 0.50mm Shoulder Screw Lengthening Shim (Pack of 25) - Made In USA

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Precision Wedgies™ Large Flexible Shims, 48945, 3.54"L, 2.36"W, 0.48"H, Pkg of 16 - USA

Precision Wedgies™ Large Flexible Shims, 48945, 3.54"L, 2.36"W, 0.48"H, Pkg of 16 - USA

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

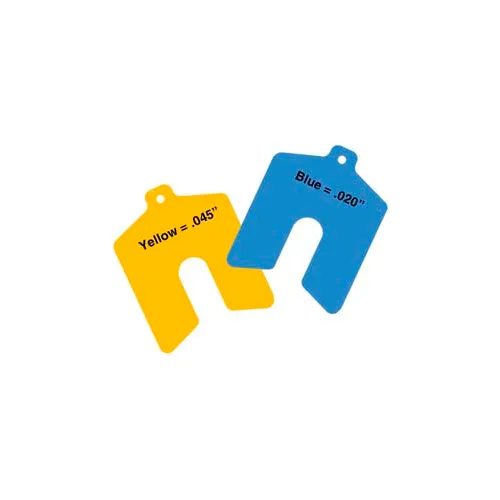

Made of a proprietary elastomer with unique flow and set characteristics to fill irregular gaps. Size B - 3" x 3". Slot Size - 7/8". Tab makes shim placement easier and safer, while eliminating the need to place hands under the machinery during installation or removal of shim. Yellow Sof' Shoe® elastomer shims are 0.045" thick, compress to 0.040", and absorb up to 0.020" of angularity. Precision Brand® Sof' Shoe® elastomer shim solves angular soft foot alignment problems on motors, pumps, generators, turbines, and other plant machinery in minutes. Sof' Shoe® cures angular soft foot and extends bearing and motor life. It is an inexpensive alternative when compared to more time consuming and expensive options such as milling the base or foot, hand cutting graduated shims, replacing base, or rebuilding base with poured epoxy. Each Sof' Shoe® elastomer shim's thickness has a 12 percent flat compression under standard bolt torque, yet will absorb the angularity of nearly half its thickness. Product also available in cut to length sheets with 38.5" width.

  • COLOR Yellow
  • WIDTH 3"
  • LENGTH 3"
  • SLOT SIZE 7/8"
  • MANUFACTURERS PART NUMBER 49130
  • THICKNESS 0.045"
  • PACKAGE QUANTITY 10
  • UOM PKG
  • CONSTRUCTION Elastomer
  • BRAND Precision Brand
  • SIZE B
  • COUNTRY OF ORIGIN Made in USA
  • WEIGHT 0.1723
