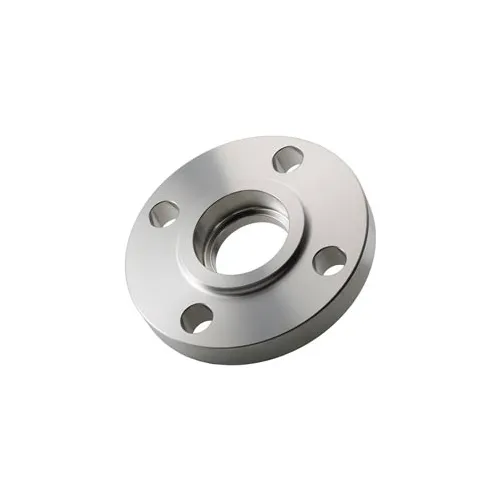

316 Stainless Steel Class 150 Socket Weld Flange 2-1/2" Female

Merit 316 Stainless Steel Class 150 Socket Weld Flange 1" Female Socket weld flanges are typically used in smaller high pressure systems. Stainless steel pipe is slipped into the socket end of the flange and welded on the outside.

Merit 316 Stainless Steel Class 150 Weld Neck Schedule 10 Bore Flange 2" Female Weld Neck flanges have a long tapered hub which is butt-welded to the mating pipe. This provides important reinforcement of the flange proper from the standpoint of strength and resistance to dishing and easily absorbs the repeated bending caused by line expansion or other variable forces.

Merit 316 Stainless Steel Class 150 Lap Joint Flange 2" Female Lap Joint flanges are utilized in conjunction with stub-ends. These are employed in systems that need frequent cleaning and/or inspection.

Merit 316 Stainless Steel Class 150 Slip-On Flange 10" Female Slip-On flanges are utilized in lieu of weld neck flanges whenever cost or space is a major concern. These are bored slightly larger than the pipe OD so the flange slips over the pipe and is then lined up and welded into place.

Merit 316 Stainless Steel Class 150 Slip-On Flange 2-1/2" Female Slip-On flanges are utilized in lieu of weld neck flanges whenever cost or space is a major concern. These are bored slightly larger than the pipe OD so the flange slips over the pipe and is then lined up and welded into place.
