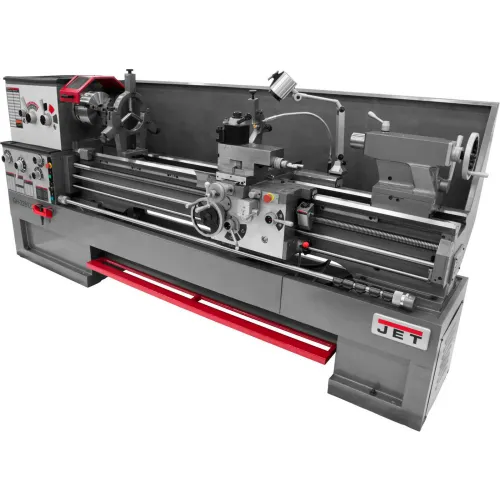

JET 321890 GH-26120ZH 4-1/8 Large Spindle Bore Lathe, 10 HP

The JET ZH-Series 4-1/8ö spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty

Features:
  • 4-1/8 Spindle Bore
  • Clutch operated headstock with all headstock gears hardened and ground
  • Heavy-duty tailstock and quill
  • Rapid power traverse to cross slide and carriage
  • Traveling splash guard
  • 12 speeds range 36-1600 RPM
  • Headstock gearbox design allows easy selection of inch and metric threading
  • Bed ways are induction hardened and ground for durability.
  • Standard Equipment:
  • 4-Way Toolpost
  • 12 3-Jaw Direct Mounted Scroll Chuck with jaws
  • Face Plate
  • 2 Steady Rests
  • Follow Rest
  • Coolant System
  • Halogen work lamp


Weights & Dimensions

  • Spindle Bore 4.125 in
  • Width of Bed 16 in
  • Distance Between Centers 120 in
  • Swing Over Cross Slide 16-1/2 in
  • Swing Over Bed 26 in
  • Compound Slide Travel 5-1/2 in
  • Cross Slide Travel 12-3/32 in
  • Max Tool Size 1-1/4 X 1-1/4 in
  • Tailstock Spindle Travel 6 in
  • Follow Rest Capacity 25/32 - 3-15/16 in
  • Number of Threads per Inch 48 in
  • Swing Through Gap 34 in
  • Carriage Travel 108-1/4 in
  • Steady Rest Capacity Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16 in
  • Length of Gap 8 in

Product Details

  • Spindle Mount D1-8
  • Range of Cross Feeds (In./Rev.) .010 - .0404
  • Motor Voltage 230/460 V
  • Taper Attachment No
  • Range of Longitudinal Feeds (In./Rev.) .0023 - .0937
  • Range of Spindle Speeds 36 - 1,600 rpm
  • Motor Horsepower 10 HP HP
  • Taper in Tailstock Spindle MT-5
  • Style Large Spindle Bore
  • Range of Metric Threads 1-14 mm
  • Number of Spindle Speeds 12
  • Range of Threads per Inch 2-30 in
  • Number of Metric Threads 22
  • Collet Closer No
  • Spindle Taper with Sleeve MT-5
  • DRO None
  • Prewired 230
  • Phase 3
  • Number of Longitudinal & Cross Feeds 65
  • Brand JET
  • Warranty 2-Year Warranty
  • Manufacturers Part Number 321890
