80/20 3383 Single Tab End Fastener

80/20 3273 T-Slot Touch fasteners Features: 15 Series compatible Mounts lightweight panels and parts quickly and easily The finned projection twists easily into the T-slot Includes a self-adhesive mating padPart

80/20 3090 Double Anchor Fastener, Short Assembly Features: One of 80/20's strongest fastening options Allows infinite position ing along a T-slotted profile Provides a vibration-proof, clean, flush connection where space restrictions apply Creates 90° connections where T-slots are in alignment Profile must have T-slots opposite each other Short assemblies mount across the 1.0" dimension for 10 Series and 1.5" dimension for 15 Series Long assemblies mount across the 2.0" dimension for 10 Series and 3.0" dimension for 15 Series

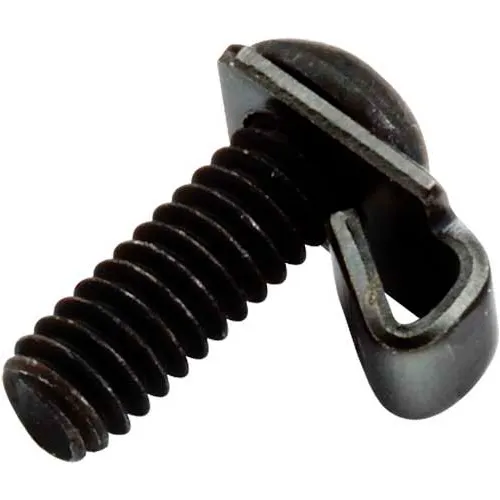

The single tab end fastener assembly is comprised of a button head socket cap screw and a single tab wing clip. The single tab end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The single winged tab is used for radius and angled profiles; the winged tab prevents the mating profile from rotating while the straight end is flush with the mounting profile. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

80/20 3362 Anchor Fastener Features: One of 80/20's strongest fastening options Allows infinite position ing along a T-slotted profile Provides a vibration-proof, clean, flush connection where space restrictions apply Creates 90° connections where T-slots are in alignment Ships pre-assembled, saving you time

80/20 3092 Double Anchor Fastener, Long Assembly Features: One of 80/20's strongest fastening options Allows infinite position ing along a T-slotted profile Provides a vibration-proof, clean, flush connection where space restrictions apply Creates 90° connections where T-slots are in alignment Profile must have T-slots opposite each other Short assemblies mount across the 1.0" dimension for 10 Series and 1.5" dimension for 15 Series Long assemblies mount across the 2.0" dimension for 10 Series and 3.0" dimension for 15 Series
