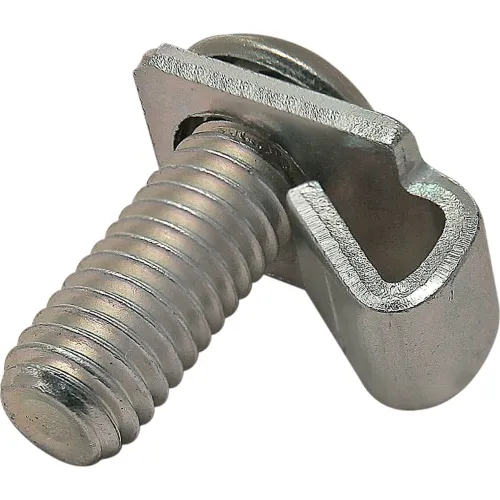

80/20® 25 Series Single Tab End Fastener w/ M6 Screw, Bright

The single tab wing clip is commonly used with a button head socket cap screw to create custom end fastener assemblies. The winged tab of the clip prevents the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

80/20 3679 End Fastener Double Wing Clip Features: Provides a clean, hidden method of connecting profiles at 90° without the use of joining plates Winged tabs of clip prevents mating profile from rotating Mounting profile requires an end tap; mating profile requires an access hole to reach the screw head

80/20 3351 Double End Fastener Double Wing Clip Features: Provides a clean, hidden method of connecting profiles at 90° without the use of joining plates Winged tabs of clip prevent mating profile from rotating Mounting profile requires an end tap; mating profile requires an access hole to reach the screw head

80/20 3183 End Fastener Single Wing Clip Features: Provides a clean, hidden method of connecting closed-sided and quarter round profiles at 90° without the use of joining plates Winged tab of clip prevents mating profile from rotating The mounting profile requires an end tap; mating profile requires an access hole to reach the screw head

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head. Additional Information: Wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom ...
