80/20 5910 Double Horizontal Base, 1"

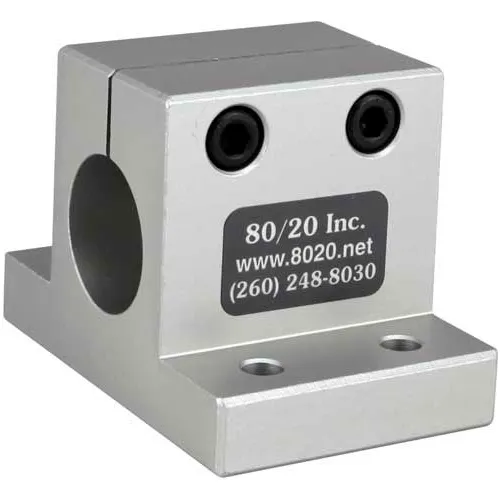

The single shaft stanchion base is commonly used with the aluminum tube profile to create an additional axis. The tube connects parallel to the mounted base, and there is a clearance channel for running wires or cables. The base is aluminum, making it a strong and durable option. Clamp screws are included.

The plate connector is a strong external fastening method offering a long-lasting connection. The plate connector loads from the side or end of the profile and forms a 90 degree connection. The plate connector allows users to mount to the mating profile.

The universal structural pivot nub is an external fastening method commonly used as a connection hub to create a structural pivot ranging from 0-180 degrees either parallel or perpendicular to the mounting profile. The universal structural pivot nub requires no machining services and can be easily assembled, lending itself to repositioning and reuse. The suggested mounting hardware can be found on the "Suggested Hardware" tab.

The 40005-CP mounting plate is compatible with Yaskawa® HC10DTP, HC20DTP, HC30DTP and Kuka® iiwa 3 R760, iiwa 7 R800, iiwa 14 R820, iisy 11 R1300, iisy 15 R930, KR 6 R700 & R900, KR 10 R1100 & R900, collaborative robots (cobots). Features: Precise robot placement with dowel pin holes Compatible with 80/20's 40 series profiles & parts Countersunk holes for a variety of mounting options Center through hole for electrical and pneumatic lines Connect directly to 80/20's Static Robot Pedestals and Mobile Robot Pedestals

The double shaft stanchion base is commonly used with the aluminum tube profile to create two additional axes. Tubes connect parallel to the mounted base, and there are clearance channels for running wire or cables. The stanchion is aluminum, making it a strong and durable option. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
