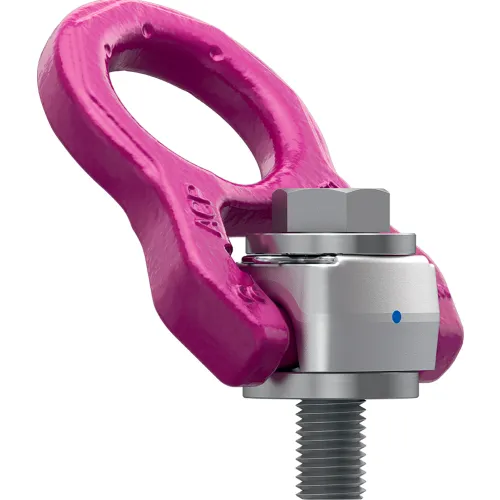

RUD 8 Ton, M30, Pivot, Swivel Load Ring

Direct VIP-chain connection. Double ball-bearings is the optimal solution for turning and flipping operations under full load. Lifting points rotates 360 degrees. Large distance between bolt-on surface and load to avoid damage. Rotatable at nominal WLL, 90 degree to the bolt-on direction. Suspension ring with enlarged pivoting area. Available in Metric and UNC thread. Maximum operation temperature range WITHOUT reduction of WLL-40 to 200 Celsius. Maximum operation temperature WITH reduction of WLL up to 400 degrees Celsius.

Ball bearing for shock-free rotating and turning with less friction. Lifting points pivots 360 degrees. Suspension ring with enlarged pivoting area. Available as Metric or UNC Thread. Clear marking of the minimum WLL for all loading directions. Patented markings for easy determination for withdraw of service as well as the determination of the load angle. Rotatable at nominal WLL, 90 degree to the bolt-on direction. Variable bolt lengths available for tapped or through holes. Non-removable special bolt. Large distance between bolt-on surface and load to avoid damage. Maximum operation ...

Codipro Triple Swivel Ring Safety factor 4 or 5, according to the proposed WLL Steel of the class > 8 Triple articulation allows it to line up perfectly with the sling Two ways of tightening: either by open-ended spanner or by Allen key

Codipro Triple Swivel Ring Safety factor 4 or 5, according to the proposed WLL Steel of the class > 8 Triple articulation allows it to line up perfectly with the sling Two ways of tightening: either by open-ended spanner or by Allen key

Codipro Triple Swivel Ring Safety factor 4 or 5, according to the proposed WLL Steel of the class > 8 Triple articulation allows it to line up perfectly with the sling Two ways of tightening: either by open-ended spanner or by Allen key
