VLBG-Plus with ICE-Bolt lifting points pivots 360 degrees. Suspension ring pivots 180 degrees. Optimal WLL with captive but exchangeable ICE-Bolt with special corrosion protection. Clear marking at the bolt head: RUD, ICE, thread size, batch number and class of strength. Clamping spring works as a noise reduction and holds the suspension ring in the requested position. Clear marking of the minimum WLL for all loading directions. Available as Metric or UNC thread. Variable bolt lengths available for tapped or through holes. Quick and easy installation with just one bolt connection. Assembly with flat/ring wrench or allen key possible. Maximum operation temperature range WITHOUT reduction of WLL -40 degrees to 100 degrees Celsius. Maximum operation temperature WITH reduction of WLL to 350 degree Celsius.

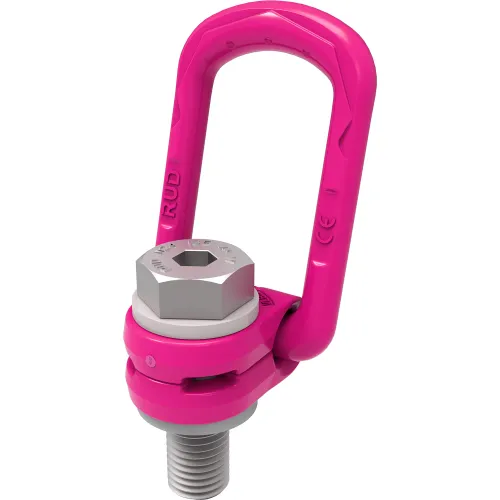

RUD Swivel Hoist Ring, 180 Pivot, 11, 000 lb. Load Capacity
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$359.95
1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 6-3/8 in |
| Width | 6-3/8 in |
| Height | 6-1/2 in |
| Weight Capacity | 11000 |
| Weight | 7 lbs |
| Dimension T | 5-25/32 in |
| Dimension K | 3-1/8" |
| Dimension A | 2-3/8 in |
| Dimension B | 4-1/16 in |
| Dimension L | 4" |
| Dimension I | 5-15/16 in |
| Dimension D | 2-3/8 in |
| Dimension E | 2-1/2 in |
| Dimension F | 7/8" |
| Dimension C | 2-9/16 in |
| Bail Opening | 2.5 x 2.5625 in |
| Dimension H | 1-5/8" |
| Dimension M | 1 1/4"-7UNC |
| Bolt Size | 1 1/41.25 in |
| Dimension G | 2-13/32 in |
| Dimension N | 2-5/8" |
| Working Load Limit | 11000 lbs |
Product Details
| Assembly Required | No |
| Material | Steel |
| Manufacturers Part Number | 8503187 |
| Brand | RUD |
| Color | Pink |
| Hook Type | Bolt on |
| Package Quantity | 1 |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | MD 2006/42/EC |
