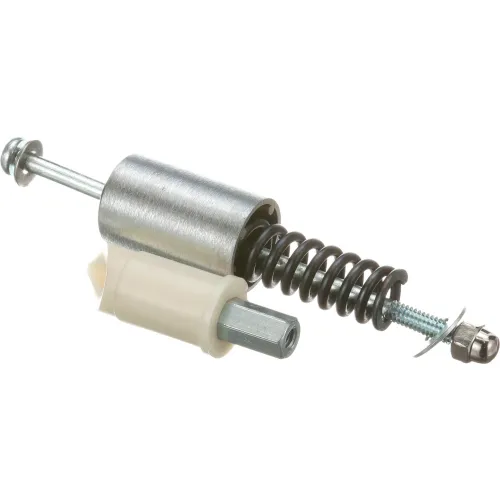

Allpoints 8012398 Hinge, Spring Kit For Kolpak Refrigeration

Reversible Cam Lift Hinge Brushed Chrome Finish 6" Long Od. X 7" Wide Od. To Reverse Push Out Nylon Bearing In Strap And Replace On Other Side Of Strap. Flush Offset To Add Spring Assist Cartridge Order #26-1906 Series 1255

Reversible Cam Rise Lift Off Hinge. Die-Cast Zamack Polished Chrome. 1-1/8" Offset 5-1/2" X 10" Od Strap Hole Centers 5-1/16" Flange Hole Centers 4-1/2" To Add Spring Cartridge Order #26-1903 For Replacement Cams Order #28-1164 Standard Kiel Series 9300l Replacement Chg W60 Series 1245, 2860

Reversible Cam Rise Lift Off Hinge, Die-Cast Zinc Polished Chrome. 10-1/16" Long Od. X 5-1/2" Wide Od. Strap Has A Plastic Cam Rise Stem In It Which Goes Into The Flange., Number "1245" Is Casted On Strap & Flange. 1-1/8" Offset To Reverse Remove Cap And Push Out Cam, Replace Cam On Other Side Of Strap And Replace Cap. For Replacement Cam Kit Order #28-2410

Reversible Spring Assisted Cam Lift Hinge, 10-1/8" Long Od. X 5-21/32" Wide. To Reverse Remove Cap And Push Out Cam, Replace Cam On Other Side Of Strap And Replace Cap. Strap Has A Hex Hole In It Which Accepts The Stem From The Flange., Number "1245" Is Cast On Strap Number "1248" Is Cast On Flange. Flush Offset Die Cast Zinc Polished Chrome Plated.

Reversible Cam Lift Hinge, 10" Wide Od Strap Has A Plastic Cam Rise Stem In It Which Goes Into The Flange., Number "1245" Is Cast On Strap & Flange. 1-3/8" Offset To Reverse Remove Cap And Push Out Cam, Replace Cam On Other Side Of Strap And Replace Cap.
