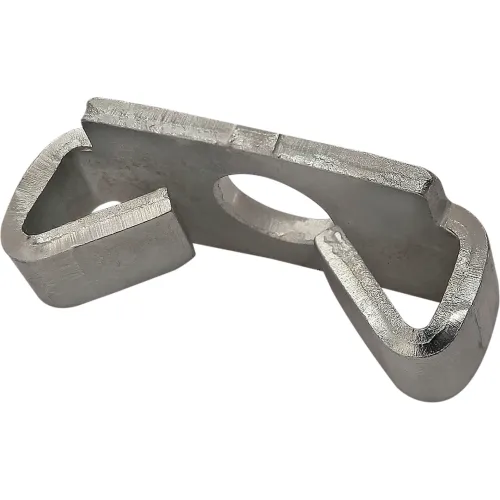

80/20® 30 Series End Fastener w/Obolt

80/20 3273 T-Slot Touch fasteners Features: 15 Series compatible Mounts lightweight panels and parts quickly and easily The finned projection twists easily into the T-slot Includes a self-adhesive mating padPart

The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.

The single tab end fastener assembly is comprised of a button head socket cap screw and a single tab wing clip. The single tab end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The single winged tab is used for radius and angled profiles; the winged tab prevents the mating profile from rotating while the straight end is flush with the mounting profile. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

80/20 3369 Butt Fastener Features: Fastens two profiles end-to-end formaximum strength and near perfectalignment Connecting bolt included Provides a clean and flush connection where space restrictions apply

The wire mesh fastener is typically used with Quick Frame profiles to secure .500" x .500" mesh panels. It is made of gray nylon and fastens to a square tube with self-tapping or self-drilling screws.
