Vestil

Model # :WBB3147271

MPN #: AHA-2-10-8

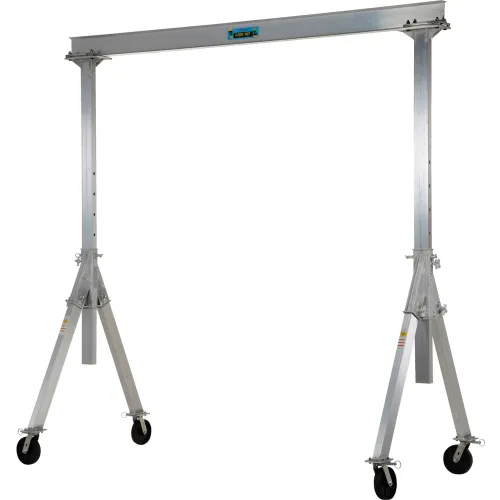

Adjustable Height Aluminum Gantry Crane, 2000 lb. Capacity, 10'W x 8-11/16'H

Product Description
The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows for simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Unit comes standard four (4) position locking swivel casters with roller bearings (2K-4K units have glass filled nylon casters. 6K units have phenolic casters). Included are two (2) straps, allowing one person to transport the gantry crane in one neat packageFeatures:
  • Heavy-duty welded aluminum construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • All units comply with applicable CMAA and ANSI specifications
  • Base Diameter Or Dimension (IN): 120" x 53-3/4"
PRICE
$3,199.00

1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width10
Weight Capacity2000 lbs
Weight183 lbs
Beam Height6 in
Wheel Diameter8 in
Base Diameter Or Dimension53-3/4 in
Wheel Width2 in
Max Height104 in
Adjustable HeightYes in
Min Height68 in
Flange Width3-5/16 in
I-Beam Height6 in
Usable Width96-1/4 in

Product Details

Assembly RequiredYes
Wheel MaterialGlass Filled Nylon
TypeGantry Crane
ColorSilver
SeriesAHA
Wheel Type4 Swivel
MaterialAluminum
Manufacturers Part NumberAHA-2-10-8
BrandVestil

Warranty

Warranty1 Year yr

Compliance & Certifications

CertificationsCMAA, ANSI
