Vestil

Model # :WBB3147195

MPN #: AHSN-8-15-14

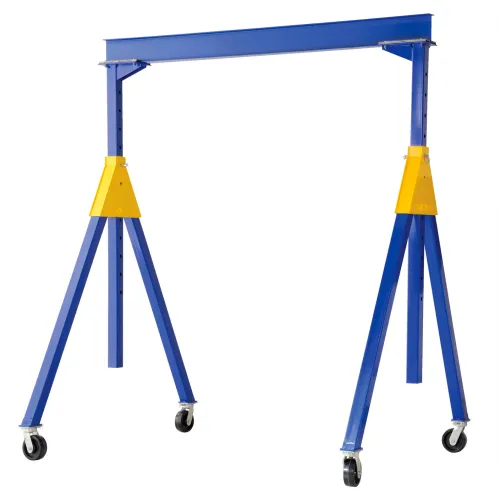

Adjustable Height Steel Knockdown Gantry Crane, 8000 lb. Capacity, 15'W x 14-15/16'H

Product Description
The adjustable height steel gantry crane is designed for transporting and positioning materials along the length of the beam. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings (2K-4K units have glass filled nylon casters. 6K-8K units have phenolic casters. 10K model has steel casters). Lock the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Assembly is required.Features:
  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel glass filled nylon casters with four-way position locks for safe positioning
  • Easily maneuvered between stations when unloaded
  • All units comply with applicable CMAA and ANSI specifications
  • Base Diameter Or Dimension (IN): 179-3/4" x 88"
PRICE
$4,325.00

1
1
Ships in 40 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width15
Weight Capacity8000 lbs
Weight1112 lbs
Beam Height10-1/8 in
Wheel Diameter8 in
Base Diameter Or Dimension88 in
Wheel Width3 in
Max Height179 in
Adjustable HeightYes in
Min Height103 in
Flange Width4 in
I-Beam Height10-1/8 in
Usable Width149-3/4 in

Product Details

Assembly RequiredYes
Wheel MaterialPhenolic
TypeGantry Crane
ColorBlue
SeriesAHSN
Wheel Type4 Swivel
MaterialSteel
Manufacturers Part NumberAHSN-8-15-14
BrandVestil

Warranty

Warranty1 Year yr

Compliance & Certifications

CertificationsCMAA, ANSI
