Air receivers/ surge tanks are designed for point-of-use air storage. Ideal for providing compressed air for short, peak demand applications. ASME Code, National Board Registered.
Weights & Dimensions
- Tank Size 30 gal
- Width 28-1/2 in
- Height 47-1/2 in
- Weight 122 lbs
- Length 31 in
Product Details
- Brand Campbell Hausfeld
- Tank Orientation Vertical
- Description Air Receiver Surge Tank
- Manufacturers Part Number AR8032
- Savings Everyday Low Price
- Max PSI 200 psi
- Includes Top Plate
There are 2 questions and 2 answers for this product.
-
what is the the hole size in top of tank that the compressor line hooks to, also the drain hole size
Question Asked By: Jerry, July 28, 2020
Answer This Question
Question Answered By:
-
Product Expert, July 30, 2020
Hello, regarding this unit, the hole in the very top of the tank where the check valve connects is ¾". The port halfway down the head of the tank where the pressure switch connects to the tank is ¼". The connector that would come out of the pressure switch is typically ¼", but as this unit is just a surge tank there is not a pressure switch installed. The size of the drain hole in this tank is ½". Thank you for your interest in our products.
-
-
What are to measurements of the top plate?
Question Asked By: Bill, September 07, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Bill, The top plate is 23"L x 9"W. Thank you for your interest in our product.
-

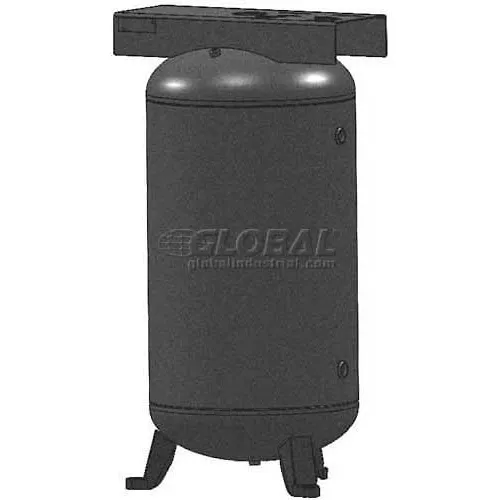

Campbell Hausfeld Air Receiver Surge Tank AR8032, Vertical, 30 Gal., Top Plate
$699.0
