Dyna-Coil valves are used when you need to convert an electrical signal into a flow of air. 3-way models allow air to flow through the valve when energized and exhaust when de-energized. Normally closed means inlet air is blocked until the valve is energized. Normally open means inlet air flows through the valve and is blocked when energized.
- LENGTH INCHES 1-13/16
- WIDTH INCHES 1-3/16
- HEIGHT INCHES 2-13/16
- BRAND Bimba-Mead
- MANUFACTURERS PART NUMBER MB25-3USC-24VAC
- CV IN 0.035
- PRESSURE Vacuum to 120 PSI
- CV OUT 0.05
- MOUNTING HOLES 8-32 UNC-2B Threads
- LUBRICATION Not Required
- MEDIA Air / Max temperature 185° F
- CONDUIT 1/2" NPS
- RESPONSE 20-30 ms
- ORIFICE 0.038"
- FILTRATION 40 Micron
There are no questions for this product.
Popular item in this category
Bimba-Mead Air Valve Solenoid MB25-3USC-240VAC, 1/4" NPTF, 3 Port, 2 Pos, Normally Clsd/Open, 240Vac
Item #: B571748
Not Yet Rated
Usually ships in 5 to 8 days
$159.95

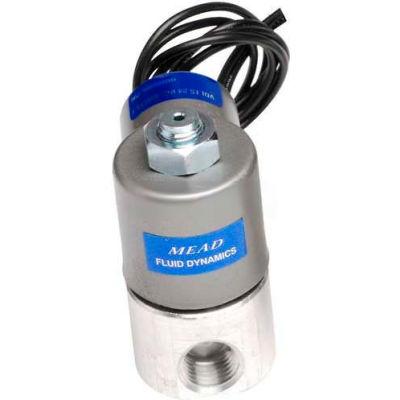

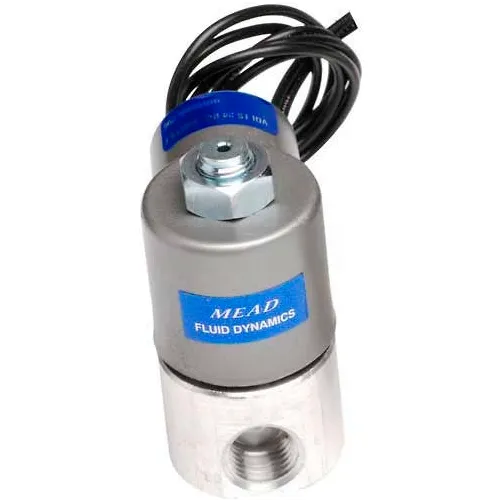

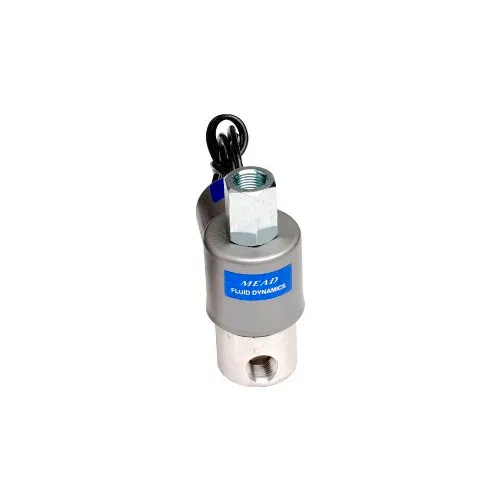

Bimba-Mead Air Valve Solenoid MB25-3USC-24VAC, 1/4" NPTF, 3 Port, 2 Pos, Normally Clsd/Open, 24VAC
$159.95
- Product Information
- Customer Review
- Product Q&A
Bimba-Mead Air Valve Solenoid MB25-3USC-24VAC, 1/4" NPTF, 3 Port, 2 Pos, Normally Clsd/Open, 24VAC
Item #: WBB571746
