Canarm

Model # :T9FB3191974

MPN #: ALX150-UD100S

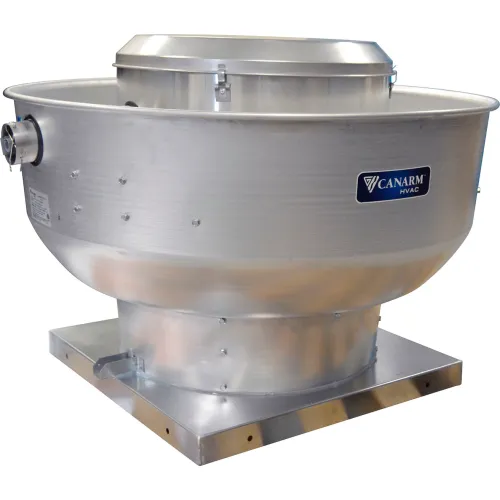

Canarm® ALX 15" Roof Exhauster Direct Drive Upblast, 2450 CFM, 1 HP, 120/240V

Product Description
Ideal for exhausting air from factories, offices, warehouses or commercial buildings. The ALX series spun aluminum exhaust fan can be used as either a roof top or wall mount exhaust fan.

Features:
  • Spun aluminum housing will not rust, chip or peel
  • Aluminum backward inclined wheel is non-overloading
  • All motors are 1 Phase 120/240V operation and can be operated at 50 or 60 Hz
  • All units can be wall mounted
  • Variable speed PSC Motors available on ALX105/120/135
  • Quick release latches for easy motor access on ALX135 – ALX165


PRICE
$829.00

1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height23-1/8 in
Weight120 lbs
Fan Diameter15 in
Base Dim.21 in²
Base Length21 in

Product Details

RPM1750 rpm
CFM2450 CFM
Horsepower1 HP
ColorGray
Number of Speeds1
Drive TypeDirect Drive
Hertz60 Hz
Operating Temperature300° F
Motor TypeOpen Dripproof
Voltage120/240 V
CFM High2450 CFM
MaterialAluminum
Phase1
DescriptionUpblast Direct Drive Spun Alum Exhauster
Manufacturers Part NumberALX150-UD100S
BrandCanarm

Warranty

Warranty1 yr

Compliance & Certifications

CertificationsUL
