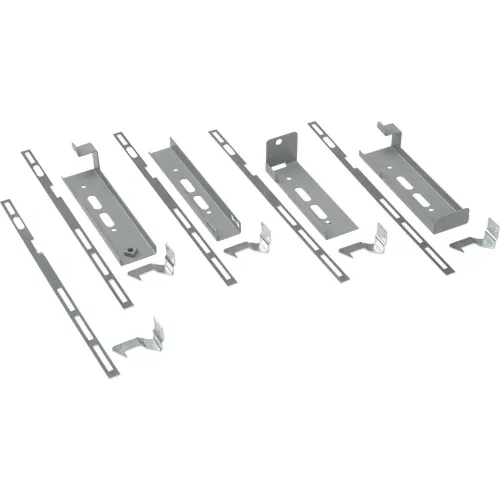

Hoffman APCABVA, Operator Adapter, Preferred Cut., For A-B 1494V, Steel/Zinc
An operator adapter is required to install a disconnect in Bulletin A21S4, A28S4 and WS2D Hoffman enclosures that have a preferred cutout. Operator adapters include components needed to interlock the master door with the disconnect operating mechanism. Panel drilling and installation instructions are furnished with each operator adapter. Each brand and type of disconnect requires a different operator adapter. Be sure to select the proper operator adapter and enclosure for the disconnect that you have selected.
Share
Spec Sheet
Hoffman APCABVA, Operator Adapter, Preferred Cut., For A-B 1494V, Steel/Zinc
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$349.95
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Product Details
| Manufacturers Part Number | APCABVA |
| Material | Steel |
| For | Preferred Cut |
| Description | Operator Adapters For Preferred Cutouts |
| Color | Silver |
| Brand | Hoffman |
